[shortdesc]
- Managed, Rack-mountable, 24 x 1G (4 shared SFP) ports, No PoE, Layer 3
[/shortdesc]
[properties]
| Properties |
HPE Aruba Networking 2930M 24G 1-slot Switch (JL319A) |
| Description |
Switch, L3, managed, 24 x 10/100/1000 ports including 4 combo dual-purpose shared SFP ports for fiber connectivity. Power supplies sold separately.
|
| Product Family |
2930M Switch Series |
| Product Type |
Ethernet Switch |
| I/O ports and slots |
20 Autosensing 10/100/1000 ports |
| 4 Combo 10/100/1000BASE-T or 100/1000Mbps SFP Ports |
| Additional ports and slots |
1 Dual Personality (RJ-45 or USB Micro-B) serial console port
1 USB A port for file management
1 100BASE-T Out of Band Management Port
1 Uplink Module Slot
1 Stacking Module Slot
2 Power Supply Slots (PSUs sold separately) |
| Dimensions |
4.39 x 44.25 x 32.43 cm (1.73 x 17.42 x 12.77 in) |
| Weight |
9.81 lbs (4.45 kg) |
[/properties]
[specifications]
| Specifications |
2930M-JL319A |
| Memory and Processor |
Dual Core ARM Cortex A9 @ 1016 MHz
1 GB DDR3 SDRAM
Packet Buffer Size: 12.38 MB and 4.5 MB Ingress, 7.785 Egress
4 GB eMMC
|
| Performance |
| Latency |
1000 Mb Latency: < 3.1 µs
10 Gbps Latency: < 3.4 µs
|
| Throughput |
up to 95.2 Mpps |
| Switching Capacity |
128 Gbps |
| Switching Capacity (with Stacking) |
228 Gbps |
| Stacking Performance |
100 Gbps |
| MAC Address Table Size |
32,768 entries |
| Routing Table Size |
2,000 IPv4 / 1,000 IPv6 |
| Environment |
| Operating Temperature |
0°C to 55°C (32°F to 131°F) up to 5,000 ft |
| Acoustic |
Sound Power: LWAD=4.0 Bel
Sound Pressure: LpAm (Bystander) = 22.8 dB |
| Primary Airflow Direction |
Port to Power |
| Electrical Characteristics (with JL085A PSU) |
| Frequency |
50/60 Hz |
| Heat Dissipation |
145 BTU/hr 150 kJ/hr |
| Voltage |
100-127 / 200-240 VAC |
| Maximum Power Rating |
49W |
| Idle Power |
34W |
| PoE Power |
N/A |
[/specifications]

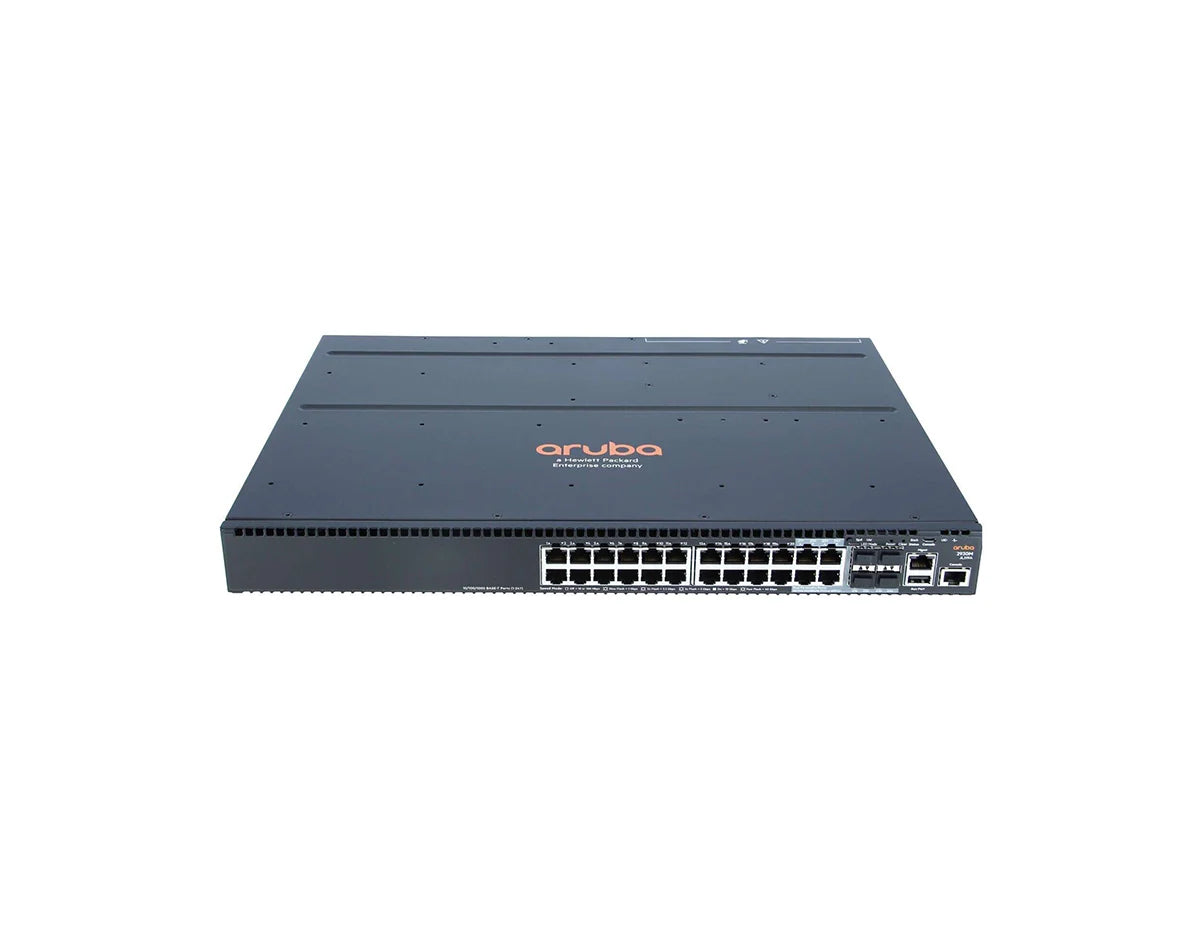

HPE Aruba 2930M 24G Switch (JL319A)
The HPE Aruba 2930M 24G Switch is designed for high-performance networking, providing reliable connectivity for a range of devices. This switch is ideal for small to medium-sized businesses looking for a scalable solution with advanced Layer 3 features, such as static routing, RIP, and Access OSPF, to manage complex networks. It includes flexible modular stacking and supports 10GbE and 40GbE uplinks (via optional modules), ensuring adaptability for future growth.
Key Features:
-
20 x Gigabit Ethernet Ports + 4 Combo Ports: Supports high-speed data transfer for a wide range of network devices with flexible SFP or RJ-45 combo ports.
-
Modular Uplink and Stacking Slots: Provides flexibility for adding 10GbE/40GbE uplinks or high-performance stacking as needed.
-
Layer 3 Switching: Supports advanced routing features like static routing, RIP, and Access OSPF for optimized network management.
-
Redundant Power Ready: Features two power supply slots for power redundancy (power supplies sold separately).
Technical Overview:
-
Recommended for: Digital workplaces, SMBs, and branch offices.
-
Ports: 20 x 10/100/1000 ports + 4 x Combo SFP/RJ-45 ports
-
Uplink Modules: 1 modular uplink slot for optional 10GbE/40GbE connectivity
-
Switching Capacity: 128 Gbps (up to 228 Gbps with stacking)
-
Forwarding Rate: up to 95.2 Mpps
-
Management: Managed via Aruba Central, AirWave, CLI, Web GUI, SNMP
