[shortdesc]
- Line Card, 48 x Gigabit SFP, Plug-in module
[/shortdesc]
[properties]
| Properties |
Cisco C9400-LC-48S |
| Description |
Cisco Catalyst 9400 Series 48-Port Gigabit Ethernet (SFP) |
| Product Family |
Catalyst 9400 |
| Product Type |
Switch Line Card |
| Number of ports |
48 |
| Port speed |
1 GE |
| Port type |
SFP |
| Cisco Catalyst 9400 Series switch min/max ports |
| C9404R |
48/96 |
| C9407R |
48/240 |
| C9410R |
48/384 |
| Physical dimensions |
Occupies one slot in Cisco Catalyst 9400 Series switches
Dimensions (H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm) |
| Max rated power (W) |
170 |
|
|
[/properties]
[specifications]
| Specifications |
C9400-LC-48S |
| Standards |
Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3an |
| Features |
‚ ‚ ‚ ‚ ‚ Supports up to 48 nonblocking SFP ports
‚ ‚ ‚ ‚ ‚ Supported on Cisco IOS XE Software Release 16.8.1 or later
‚ ‚ ‚ ‚ ‚ IEEE 802.1AE (MACsec-256) capability in hardware
‚ ‚ ‚ ‚ ‚ Layer 2 to Layer 4 Jumbo Frame support (up to 9216 bytes)
‚ ‚ ‚ ‚ ‚ Enterprise, mid-market, and commercial core and distribution deployments requiring line-rate capability
‚ ‚ ‚ ‚ ‚ Service provider: Gigabit Ethernet aggregation for DSL Access Multiplexer (DSLAM), Passive Optical Network (PON), and mobile data backhaul; FTTX for residential and business applications
‚ ‚ ‚ ‚ ‚ Enterprise: Providing Fiber To The Desktop (FTTD), for deployments where non-blocking is mandatory requirement |
| Bandwidth per slot by chassis |
| Supervisor |
‚ |
| C9400 Supervisor Engine-1 (C9400-SUP-1) |
Bandwidth per slot
Chassis C9404R: 80 Gbps
Chassis C9407R: 80 Gbps
Chassis C9410R: 80 Gbps
Oversubscription: 1:1 |
| C9400 Supervisor Engine-1XL (C9400-SUP-1XL) |
Bandwidth per slot
Chassis C9404R: 240 Gbps
Chassis C9407R: 120 Gbps
Chassis C9410R: 80 Gbps
Oversubscription: 1:1 |
| C9400 Supervisor Engine-1XL-Y (C9400-SUP-1XL-Y) |
Bandwidth per slot
Chassis C9404R: 240 Gbps
Chassis C9407R: 120 Gbps
Chassis C9410R: 80 Gbps
Oversubscription: 1:1 |
| C9400 Supervisor Engine-2XL (C9400X-SUP-2XL) |
Bandwidth per slot
Chassis C9404R: 480 Gbps
Chassis C9407R: 480 Gbps
Chassis C9410R: 480 Gbps
Oversubscription: 1:1 |
| C9400 Supervisor Engine-2 (C9400X-SUP-2) |
Bandwidth per slot
Chassis C9404R: 240 Gbps
Chassis C9407R: 240 Gbps
Chassis C9410R: 240 Gbps
Oversubscription: 1:1 |
| Operating temperature |
‚ Normal Operating * Temperature and Altitudes:
‚ ‚ ‚ ¦‚ ‚ ‚ 23° to 113°F (-5 to +45°C), up to 6,000 feet (1800 m)
‚ ‚ ‚ ¦‚ ‚ ‚ 23° to 104°F (-5 to +40°C), up to 10,000 feet (3000 m)
‚ ‚ ‚ ¦‚ ‚ ‚ *Minimum ambient temperature for cold startup is 0°C
‚ Short-Term ** Exceptional Conditions:
‚ ‚ ‚ ¦‚ ‚ ‚ 23° to 131°F (-5 to +55°C), up to 6,000 feet (1800 m)
‚ ‚ ‚ ¦‚ ‚ ‚ 23° to 122°F (-5 to +50°C), up to 10,000 feet (3000 m)
‚ ‚ ‚ ¦‚ ‚ ‚ **Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences |
| Storage temperature |
-40° to 158° F (-40° to 70°C) |
| Relative humidity |
10 to 95%, noncondensing |
| Operating altitude |
-60 to 3000m |
| Rated MTBF (hours) |
937,600 |
| Safety conditions |
Fiber optic lasers: Class 1 laser products |
| Safety certifications |
‚ UL 60950-1
‚ CAN/CSA-C222.2 No. 60950-1
‚ EN 60950-1
‚ IEC 60950-1
‚ AS/NZS 60950.1
‚ IEEE 802.3 |
| Electromagnetic emissions certifications |
‚ 47 CFR Part 15
‚ CISPR22 Class A
‚ EN 300 386 V1.6.1
‚ EN 55022 Class A
‚ EN 55032 Class A
‚ CISPR 32 Class A
‚ EN61000-3-2
‚ EN61000-3-3
‚ ICES-003 Class A
‚ TCVN 7189 Class A
‚ V-3 Class A
‚ CISPR24
‚ EN 300 386
‚ EN55024
‚ TCVN 7317 |
| ROHS compliance |
ROHS5 |
[/specifications]

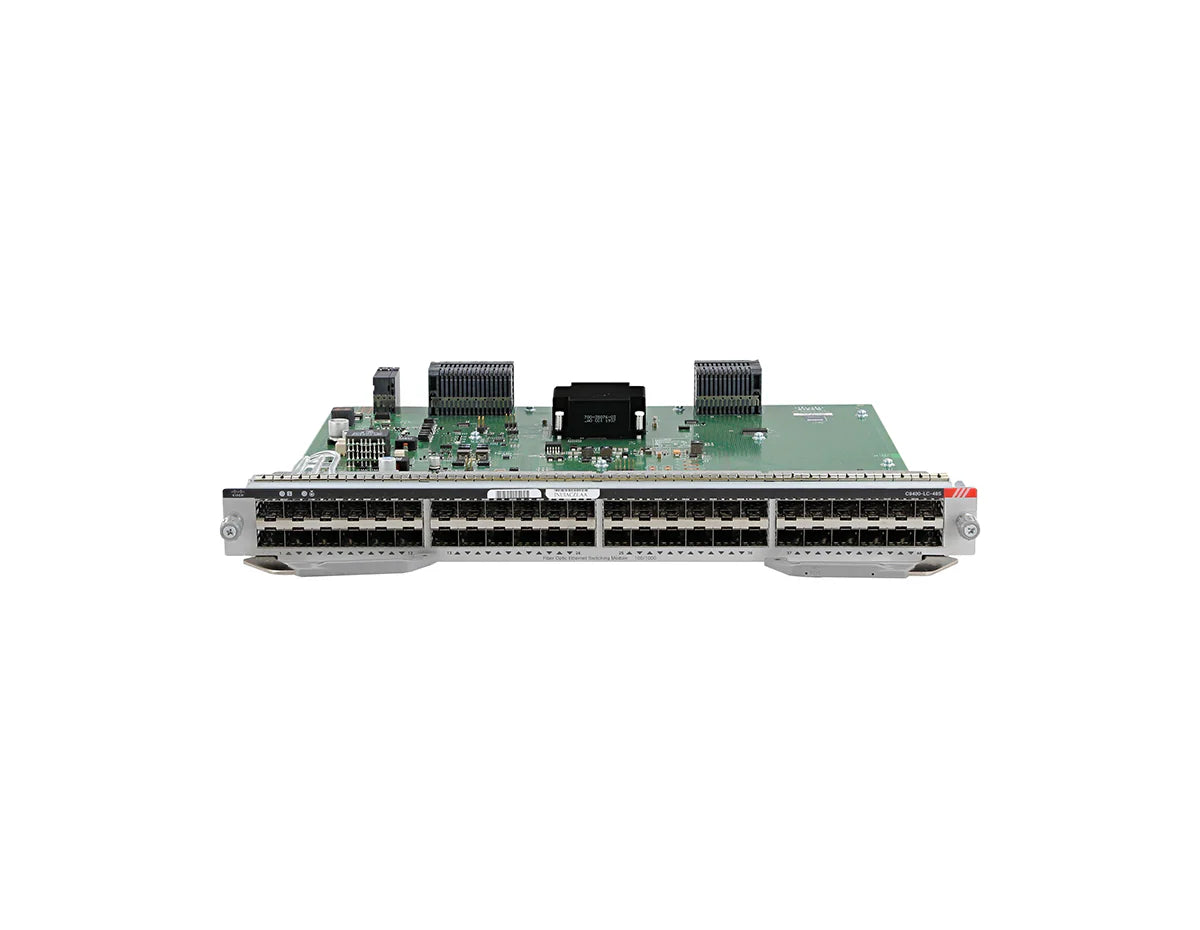

Cisco Catalyst C9400-LC-48S Line Card
The Cisco Catalyst C9400-LC-48S Line Card is a high-density module designed for the Cisco Catalyst 9400 Series modular switches, offering advanced connectivity options for enterprise networks that require reliable and high-speed data transfer. This line card features 48 Gigabit Ethernet SFP ports, making it ideal for supporting a wide range of network devices across large-scale deployments. The C9400-LC-48S is engineered to meet the growing demands of modern enterprise environments, providing the flexibility, scalability, and security needed to support expanding network infrastructures.
Key Features:
-
48 x Gigabit Ethernet SFP Ports: Provides high-speed data connectivity, enabling efficient data transfer across various network devices.
-
High-Density Design: Supports a large number of connections in a single module, ideal for environments that require extensive network coverage.
-
Scalable Architecture: Seamlessly integrates with the Cisco Catalyst 9400 Series chassis, allowing for easy network expansion as your business grows.
-
Enterprise-Grade Security: Includes advanced security features to protect your network from threats and unauthorized access.
-
Energy Efficient: Designed to reduce power consumption while maintaining high performance, contributing to lower operational costs.
Technical Overview:
-
Recommended for: Large enterprise networks requiring scalable, high-density Gigabit Ethernet connectivity with flexible deployment options.
-
Ports: 48 x Gigabit Ethernet SFP ports.
-
Compatibility: Fully compatible with Cisco Catalyst 9400 Series modular switches.
-
Management: Managed through Cisco DNA Center and other Cisco network management tools.
-
Security: Integrated with advanced security features, including network segmentation and access control.
You can check the related tab for the C9400-LC-48S datasheet.
