[shortdesc]
- Managed, Rack-mountable, 12 x 1G PoE+ ports, 2 x 1G ports, 2 x 1/10G SFP+ uplinks, PoE+ (139W, Layer 3
[/shortdesc]
[properties]
| Properties |
HPE Aruba 2930F 12G PoE+ 2G/2SFP+ Switch (JL693A |
| Description |
Popular 16-port Gigabit + 10G access switch with 139W PoE+ power. Includes 12x PoE+ ports, 2x 1G ports, and 2x 1/10G SFP+ uplinks. |
| Product Family |
HPE Aruba 2930F Switch Series |
| Product Type |
Switch |
| Key Features |
• 12x 10/100/1000 PoE+ ports with 139W PoE power
• 2x 1G ports and 2x 1/10G SFP+ uplinks
• Layer 3 static, RIP, and OSPF routing support
• VSF stacking for simplified scalability
• Advanced security with ACLs, 802.1X, and VLANs
• Managed via Aruba Central, AirWave, CLI, or Web GUI |
[/properties] [specifications]
| Specifications |
HPE Aruba 2930F 12G PoE+ 2G/2SFP+ Switch (JL693A |
| I/O ports and slots |
12 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
2 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
2 SFP+ 1/10GbE ports; PHY-less |
| Additional ports and slots |
1 dual-personality (RJ-45 or USB
micro-B serial console port |
| Dimensions |
4.39 x 25.4 x 25.4 cm (1.73 x 10 x 10 in |
| Weight |
4.85 lb (2.2kg |
| Memory and processor |
Dual Core ARM Cortex A9 @ 1016
MHz, 1 GB DDR3 SDRAM;
Packet buffer size: 12.38 MB
4.5MB Ingress/7.785MB Egress,
4 GB eMMC |
| 1,000 Mb Latency |
< 3.8 μs (64-byte packets |
| 10 Gbps latency |
< 2.9 μs (64-byte packets |
| Throughput |
up to 41.7 Mpps |
| Switching capacity |
68 Gbps |
| Routing table size |
2,000 IPv4, 1,000 IPv6 in hardware,
200 OSPF, 256 Static, 10,000 RIP |
| MAC address table size |
32,768 entries |
| Operating temperature |
32°F to 113°F (0°C to 45°C;
up to 5,000 Feet,
0°C to 40°C (32°F to 104°F
up to 10,000 Feet |
| Operating relative humidity |
15% to 95% @ 104°F (40°C, noncondensing |
| Non-operating/Storage temperature |
-40°F to 158°F (-40°C to 70°C; up to 15,000 Feet |
Non-operating/Storage
relative humidity |
15% to 95% @ 149°F (65°C |
| Acoustic |
Power: 0 dB, Pressure: 0 dB Fanless |
| Frequency |
50/60 Hz |
| Power efficiency certifications |
DoE VI certification |
| Maximum heat dissipation |
68.2 BTU/hr (72.0 kJ/hr |
| Voltage |
90 - 264 VAC, rated |
| Current |
1.7 A |
| Maximum power rating |
170 W |
| Idle power |
20 W |
| PoE power |
139 W PoE+ |
| Notes |
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped, 100% traffic, all ports plugged in, and all modules populated. |
| Safety |
UL/CUL 60950-1: 2nd Edition; UL/
CUL 63268 -1:2014; UL 62368-1:
2nd Edition; EN 60950-1:2006
+A11:2009 +A1:2010
+A12:2011+A2:2013; EN 62368-1:
2014; IEC-62368-1: 2nd Edition;
IEC 60950- 1:2005 +A1:2009
+A2:2013; IEC 62368-1:2014; IEC62368-1: 2nd Edition; EN 60825-
1:2014 / IEC 60825-1:2014 Class 1 |
| Emissions |
EN 55032:2012/CISPR 32 Class A;
FCC CFR 47 Part 15 Class A; VCCI
Class A; ICES-003 Class A; CNS 13438 |
| Generic |
EN 55024:2010/CISPR 24 |
| ESD |
IEC 61000-4-2 |
| Radiated |
IEC 61000-4-3 |
| EFT/Burst |
IEC 61000-4-4 |
| Surge |
IEC 61000-4-5 |
| Conducted |
IEC 61000-4-6 |
Power frequency
magnetic field |
IEC 61000-4-8 |
Voltage dips and
Interruptions |
IEC 61000-4-11 |
| Harmonics |
IEC/EN 61000-3-2 |
| Flicker |
IEC/EN 61000-3-3 |
| Management |
HPE Aruba Networking Management Software (AirWave
Central Network Management
IMC - Intelligent Management Center
Command-line interface
Web browser
Configuration menu
SNMP manager
Telnet
RMON1
FTP
Out-of-band management (serial RS-232C or micro USB
|
[/specifications] [accesories]
| Aruba 2930F Switches and Accessories |
| Switch Models |
• Aruba 2930F 24G 4SFP Switch (JL259A
• Aruba 2930F 48G 4SFP Switch (JL260A
• Aruba 2930F 24G PoE+ 4SFP Switch (JL261A
• Aruba CM 2930F 24G PoE+ 4SFP Switch (JL261ACM
• Aruba 2930F 48G PoE+ 4SFP Switch (JL262A
• Aruba CM 2930F 48G PoE+ 4SFP Switch (JL262ACM
• Aruba 2930F 24G 4SFP+ Switch (JL253A
• Aruba 2930F 48G 4SFP+ Switch (JL254A
• Aruba 2930F 24G PoE+ 4SFP+ Switch (JL255A
• Aruba 2930F 48G PoE+ 4SFP+ Switch (JL256A
• Aruba CM 2930F 48G PoE+ 4SFP+ Switch (JL256ACM
• Aruba 2930F 8G PoE+ 2SFP+ Switch (JL258A
• Aruba CM 2930F 8G PoE+ 2SFP+ Switch (JL258ACM
• Aruba 2930F 12G PoE+ 2G/2SFP+ Switch (JL693A
• Aruba 2930F 48G PoE+ 4SFP 740W Switch (JL557A
• Aruba 2930F 48G PoE+ 4SFP+ 740W Switch (JL558A
• Aruba CM 2930F 48G PoE+ 4SFP+ 740W Switch (JL558ACM |
| Transceivers |
• Aruba 100M SFP LC FX 2km MMF XCVR (J9054D
• Aruba CM 100M SFP LC FX 2km MMF XCVR (J9054DCM
• Aruba 1G SFP LC SX 500m MMF XCVR (J4858D
• Aruba CM 1G SFP LC SX 500m MMF XCVR (J4858DCM
• Aruba 1G SFP LC LX 10km SMF XCVR (J4859D
• Aruba CM 1G SFP LC LX 10km SMF XCVR (J4859DCM
• Aruba 1G SFP LC LH 70km SMF XCVR (J4860D
• Aruba CM 1G SFP LC LH 70km SMF XCVR (J4860DCM
• Aruba 1G SFP RJ45 T 100m Cat5e XCVR (J8177D
• Aruba CM 1G SFP RJ45 T 100m Cat5e XCVR (J8177DCM
• Aruba 10G SFP+ LC SR 300m MMF XCVR (J9150D
• Aruba CM 10G SFP+ LC SR 300m MMF XCVR (J9150DCM
• Aruba 10G SFP+ LC LR 10km SMF XCVR (J9151E
• Aruba CM 10G SFP+ LC LR 10km SMF XCVR (J9151ECM
• Aruba 10G SFP+ LC ER 40km SMF XCVR (J9153D
• Aruba 10G SFP+ to SFP+ 1m DAC Cable (J9281D
• Aruba 10G SFP+ to SFP+ 3m DAC Cable (J9283D
Note: 2930F Series Switches do not support the use of 10G LRM, nor 7M 10G DAC |
| Mounting Kit (for 24 and 48 port models |
• HPE X410 1U Universal 4-post Rack Mounting Kit (J9583A
• Aruba X414 1U Universal 4-post Rack Mounting Kit (J9583B |
| Accessories for 8 port PoE+ model (JL258A |
• Aruba 2930F 8-port Cable Guard (JL311A
• Aruba CM 2930F 8-port Cable Guard (JL311ACM
• Aruba 2930F 8-port Power Shelf (JL312A
• Aruba CM 2930F 8-port Power Shelf (JL312ACM |
| Aruba Central Foundation Licenses |
• Aruba Central Switch 6200/29xx Foundation 1 year
Subscription E-STU (Q9Y73AAE
• Aruba Central Switch 6200/29xx Foundation 3-year
Subscription E-STU (Q9Y74AAE
• Aruba Central Switch 6200/29xx Foundation 5-year
Subscription E-STU (Q9Y75AAE
• Aruba Central Switch 6200/29xx Foundation 7-year
Subscription E-STU (Q9Y76AAE
• Aruba Central Switch 6200/29xx Foundation 10-year
Subscription E-STU (Q9Y77AAE
• Aruba Central 25xx/6100/8 to 12 port Switch Foundation
1-year Subscription E-STU (Q9Y68AAE
• Aruba Central 25xx/6100/8 to 12 port Switch Foundation
3-year Subscription E-STU (Q9Y69AAE
• Aruba Central 25xx/6100/8 to 12 port Switch Foundation
5-year Subscription E-STU (Q9Y70AAE
• Aruba Central 25xx/6100/8 to 12 port Switch Foundation
7-year Subscription E-STU (Q9Y71AAE
• Aruba Central 25xx/6100/8 to 12 port Switch Foundation
10-year Subscription E-STU (Q9Y72AAE
• Aruba Central On-Premises 62xx or 29xx Switch
Foundation 1-year Subscription E-STU (R6U78AAE
• Aruba Central On-Premises 62xx or 29xx Switch
Foundation 3-year Subscription E-STU (R6U79AAE
• Aruba Central On-Premises 62xx or 29xx Switch
Foundation 5-year Subscription E-STU (R6U80AAE
• Aruba Central On-Premises 62xx or 29xx Switch
Foundation 7-year Subscription E-STU (R6U81AAE
• Aruba Central On-Premises 62xx or 29xx Switch
Foundation 10-year Subscription E-STU (R6U82AAE
• Aruba Central On-Premises 25xx/6100/8 to 12 port Switch
Foundation 1-year Subscription E-STU (R6U73AAE
• Aruba Central On-Premises 25xx/6100/8 to 12 port Switch
Foundation 3-year Subscription E-STU (R6U74AAE
• Aruba Central On-Premises 25xx/6100/8 to 12 port Switch
Foundation 5-year Subscription E-STU (R6U75AAE
• Aruba Central On-Premises 25xx/6100/8 to 12 port Switch
Foundation 7-year Subscription E-STU (R6U76AAE
• Aruba Central On-Premises 25xx/6100/8 to 12 port Switch
Foundation 10-year Subscription E-STU (R6U77AAE |
| Support |
JL693A: 4 Hour Onsite 3 Year (HP7Y1E |
[/accesories]

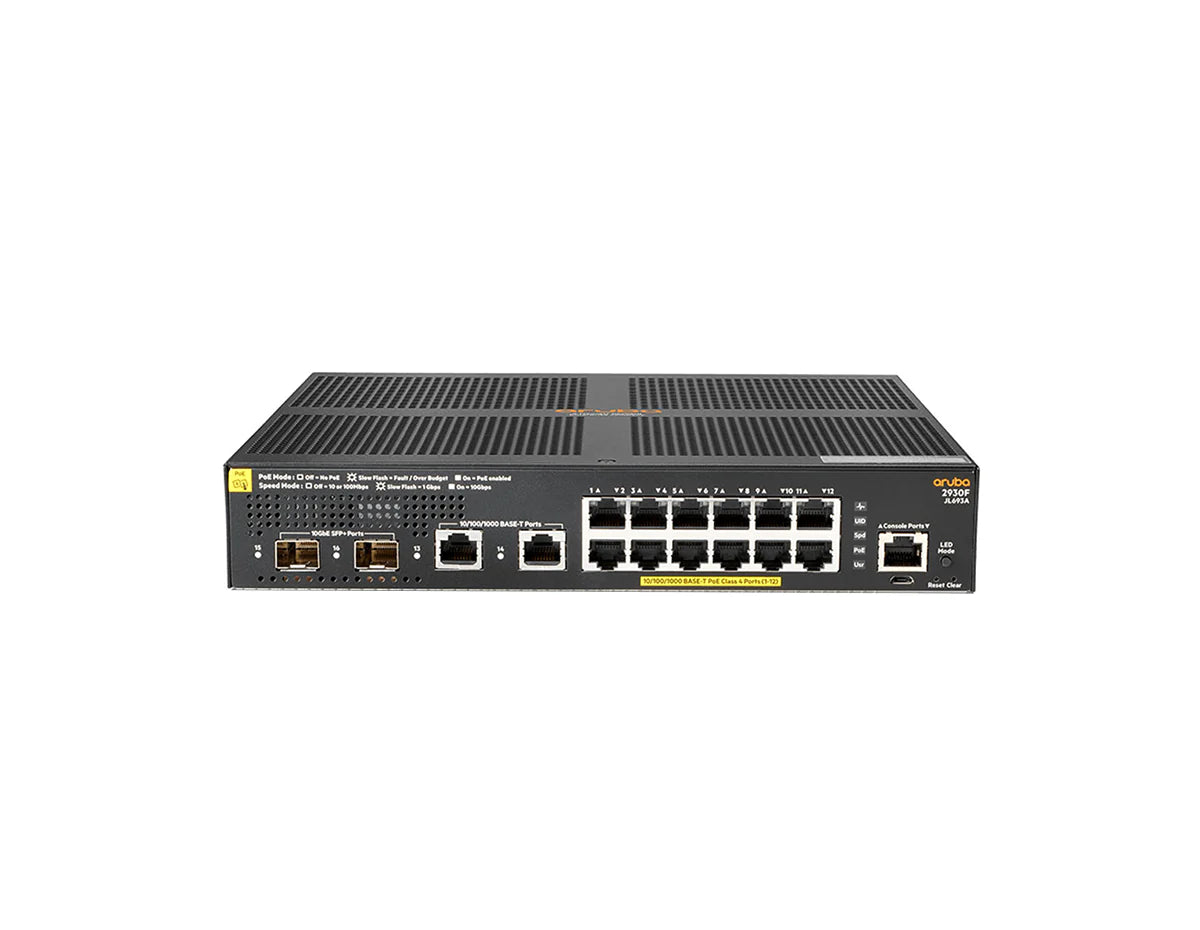

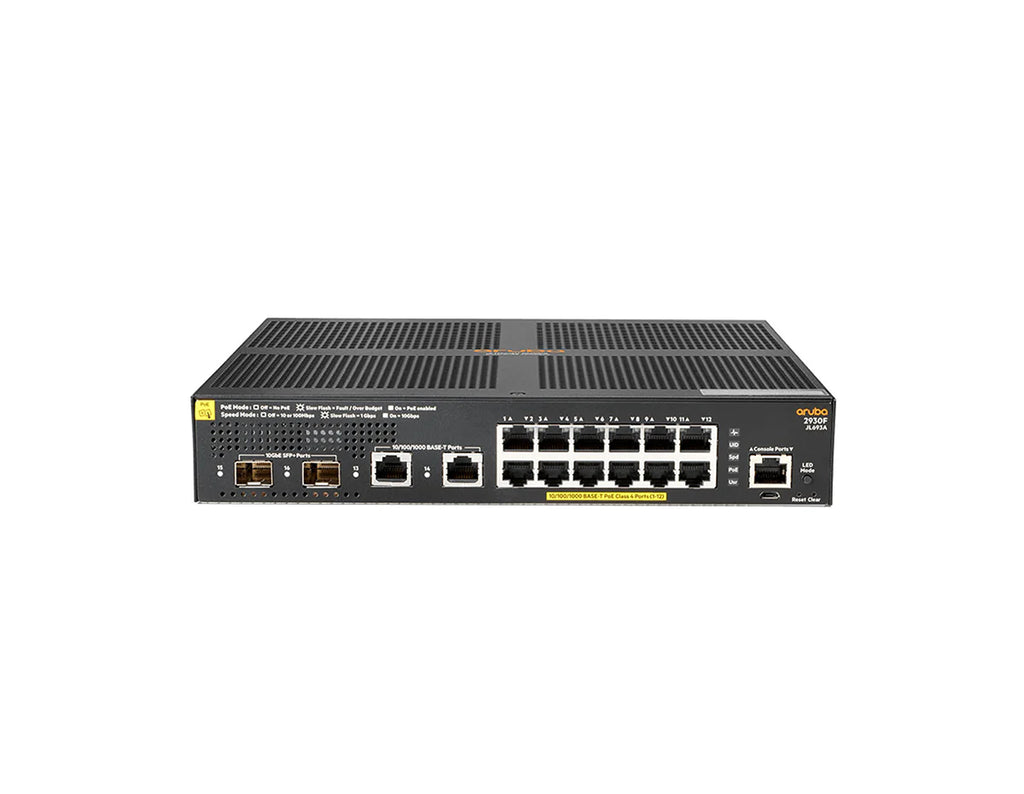

HPE Aruba Networking 2930F 12G PoE+ 2G/2SFP+ Switch (JL693A
The Aruba 2930F JL693A Switch is a compact 16-port Gigabit and 10G access switch designed for modern business networks. Equipped with 12 PoE+ ports (139W power budget, 2 additional 1G ports, and 2 dual-speed 1/10G SFP+ uplinks, it delivers flexible connectivity for access points, IP cameras, and VoIP phones.
Built on the Aruba 2930F platform, this model supports Layer 3 routing, VSF stacking, and advanced security features such as ACLs, 802.1X, and VLAN segmentation. Its robust hardware ensures high throughput with a 68 Gbps switching capacity and 41.7 Mpps forwarding rate, making it ideal for branch offices, SMBs, and educational deployments.
Key Features:
-
12 x PoE+ Ports: Provides up to 30W per port, delivering both power and data to PoE-enabled devices like access points and IP cameras.
-
2 x Gigabit Ethernet Ports & 2 x SFP+ Uplinks: Offers high-speed uplinks for network expansion and faster data transfers.
-
Energy-Efficient Operation: Compliant with IEEE 802.3az standards to reduce power consumption when network traffic is low.
-
Cloud-Based and Local Management: Managed through Aruba Central or a web-based GUI, providing easy and remote network control.
-
Advanced Security: Includes access control lists (ACLs, 802.1X authentication, and VLAN support for enhanced network security.
Technical Overview:
-
Recommended for: Small and medium businesses, branch offices, and educational environments.
-
Ports: 12 x 1GbE PoE+ ports, 2 x Gigabit Ethernet ports, 2 x SFP+ uplinks.
-
Switching Capacity: 68 Gbps.
-
Forwarding Rate: 41.7 Mpps.
-
PoE Power Budget: 139W for powering multiple PoE-enabled devices.
-
Management: Managed via Aruba Central or through a local web-based GUI.
You can check the related tab for the JL693A datasheet.
