- Switch
- Managed
- 16 × 10/100 (4 × PoE+) + 2 × combo GE (RJ-45/SFP) uplinks
- DIN-rail mountable
- PoE+
[/shortdesc]
[properties]
| Properties |
Cisco IE-2000-16PTC-G-L |
| Description |
IE2000 with 16FE Copper (4 PoE+) and 2GE uplinks (LAN Lite) |
| Product Family |
Industrial Ethernet 2000 |
| Product Type |
Ethernet Switch |
| Switches |
| Total Ports |
18 |
| RJ45 Ports |
16 FE |
| Combo Ports (SFP or RJ45) |
2 GE |
| SFP Ports |
- |
| Manufacturing License |
LAN Lite |
| Type of Possible Upgrade |
3 |
| IEEE 1588 |
- |
| NAT |
- |
| PoE(+) |
Yes |
| Conformal Coating |
- |
| Type of possible upgrade legend |
| 1 |
LAN Base to IP Lite Cisco IOS Software Upgrade |
| 2 |
Enhanced LAN Base to IP Lite Cisco IOS Software Upgrade |
| 3 |
LAN Lite to LAN Base Cisco IOS Software Upgrade |
| 4 |
LAN Base to Enhanced LAN Base Cisco IOS Software Upgrade and License Upgrade |
| U |
Upgradable to L2NAT via Enhanced LAN Base or IP Lite license |
| Software Features |
| LAN Lite License |
Baseline Features |
| Layer 2 Switching |
IEEE 802.1, 802.3, 802.3at, 802.3af standard (see Table 8), VTPv2, NTP, UDLD, CDP, LLDP, Unicast MAC filter, Resilient Ethernet Protocol (REP), Media Redundancy Protocol (MRP) Ring (IEC 62439-2) |
| Security |
SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session |
| Multicast |
IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier |
| Management |
Fast Boot, Express Setup, Web Device Manager, CNA, Cisco Prime, LMS, MIB, SmartPort, SNMP, syslog |
| Industrial Ethernet |
EtherNet/IP, PROFINET v2 |
| Dimensions (H×W×D) Inches |
5.1"H × 5.0"W × 5.26"D (130 mm H × 127 mm W × 134 mm D) |
| Weight |
4.35 lb (1.97 kg) |
[/properties]
[specifications]
| Specifications |
IE-2000-16PTC-G-L |
| DRAM |
256 MB DRAM with ECC memory |
| Flash Memory |
64 MB |
| Hardware |
IEEE 1588v2 FPGA
1 GB removable SD flash memory card (optional)
Mini-USB connector |
| Max. Forwarding Bandwidth |
3.8 Gbps |
| Max. Switching Bandwidth |
7.6 Gbps |
| Max. Forwarding Rate |
5.66 Mpps |
| Egress Buffer |
2 MB |
| Unicast MAC Addresses |
8000 |
| Internet Group Management Protocol (IGMP) Multicast Groups |
255 |
| Max. VLANs |
1005 |
| IPv4 MAC Security ACEs |
384 (default TCAM template) bidirectional
128 NAT translation entries |
| IPv4 Routing |
3500 |
| IPv6 Routing |
1750 |
| Alarm |
Alarm I/O: Two alarm inputs to detect dry contact open or close; one alarm output relay |
| Power Consumption |
16-port downlink models: 21–30 W; 4-port PoE/PoE+ models: 21–30 W (16-port base switch) and 4 PoE/PoE+ power requirement |
| Connectors and Cabling |
100BASE-FX MMF (2 km), -LX SMF (10 km), -ZX SMF (100 km), BX10 SMF (10 km) SFP and CWDM SFP-based ports: LC fiber connectors
10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
| Mean Time Between Failure (MTBF) |
374,052 hours (42.7 years) |
| Operating Temperature |
-40°C to +70°C (vented enclosure – 40 LFM)
-40°C to +60°C (sealed enclosure – 0 LFM)
-34°C to +75°C (fan/blower-equipped enclosure – 200 LFM)
-40°C to +85°C (IEC 60068-2-2 type test, 16 hours) |
| Storage Temperature |
-40°C to +85°C |
| Operating Altitude |
Up to 15,000 ft |
| Safety Certifications |
UL/CSA 60950-1; EN 60950-1; CB to IEC 60950-1; NOM-019-SCF1; CE Marking |
| EMI Emissions and Immunity Compliance |
FCC 47 CFR Part 15 Class A; EN 55022 Class A; VCCI Class A; RoHS; AS/NZS CISPR 22/24; CISPR11/22 Class A; ICES-003 Class A; KCC; CE; C-Tick; Russia & Brazil certifications; IEC/EN 61000-4-2/3/4/5/6/8/9/10/11/29; IEC/EN 61000-6-1/2/4; EN 61326 |
| Shock and Vibration |
IEC 60068-2-27 (Operational 30G 11 ms, half-sine); IEC 60068-2-27 (Non-operational 55–70G, trapezoidal); IEC 60068-2-6/-2-64; EN 61373 |
| Industry Standards |
UL508; CSA C22.2 No. 142; EN 61131-2; Protective coating (specific models only); Marine DnV; IEEE 1613/IEC 61850-3; EN 50155; EN 50121-3-2/-4; NEMA TS-2; ABB Industrial IT; IP30; ODVA EtherNet/IP; PROFINET v2.3 |
| Hazard Locations (* Cabinet enclosure required) |
ANSI/ISA 12.12.01 (Class 1, Div 2 A-D) *
EN 60079-0, -15 ATEX Certificate (Class 1, Zone 2 A-D) * |
| Humidity |
IEC 60068-2-52 (salt fog mist, test Kb) marine environments; IEC 60068-2-3; IEC 60068-2-30; relative humidity: 5%–95% non-condensing |
[/specifications]
[accesories]
| Accessories and License Upgrade PIDs |
|
| SD-IE-1GB= |
1 GB Ruggedized SD memory card (must be ordered, not included by default) |
| STK-RACK-DINRAIL= |
19 in. DIN Rail mount kit |
| IE-LICENSE-SPARE |
Spare license for software upgrade (L2 to L3 features, MRP ring, etc) |
| L-IE2000-L-B= |
IE2000 LAN Lite to LAN Base e-license |
| L-IE2000-B-E= |
IE2000 LAN Base to Enhanced LAN Base e-license |
| LIC-IE2000-IP-L= |
IE2000 LAN Base or Enhanced LAN Base to IP Lite e-license |
| LIC-IE2000-L-IP= |
IE2000 LAN Lite to IP Lite e-license |
| LIC-MRP-MANAGER= |
MRP Ring Manager license |
| LIC-MRP-Client= |
MRP Ring Client license |
| Wallmount-IE2k-16= |
Wall mount kit accessory for IE2000 16-ports downlink PID |
| IE 2000 Series Power Supplies |
|
| Product Number |
Wattage |
| PWR-IE50W-AC= |
50W AC Power Supply |
| PWR-IE50W-AC-L= |
50W AC-L Power Supply |
| PWR-IE65W-PC-AC= |
65W PC-AC Power Supply |
| PWR-IE65W-PC-DC= |
65W PC-DC Power Supply |
| PWR-IE170W-PC-AC= |
170W PC-AC Power Supply |
| PWR-IE170W-PC-DC= |
170W PC-DC Power Supply |
| PWR-IE240W-PCAC-L= |
240W PC-AC-L Power Supply |
| PWR-IE480W-PCAC-L= |
480W PC-AC-L Power Supply |
[/accesories]

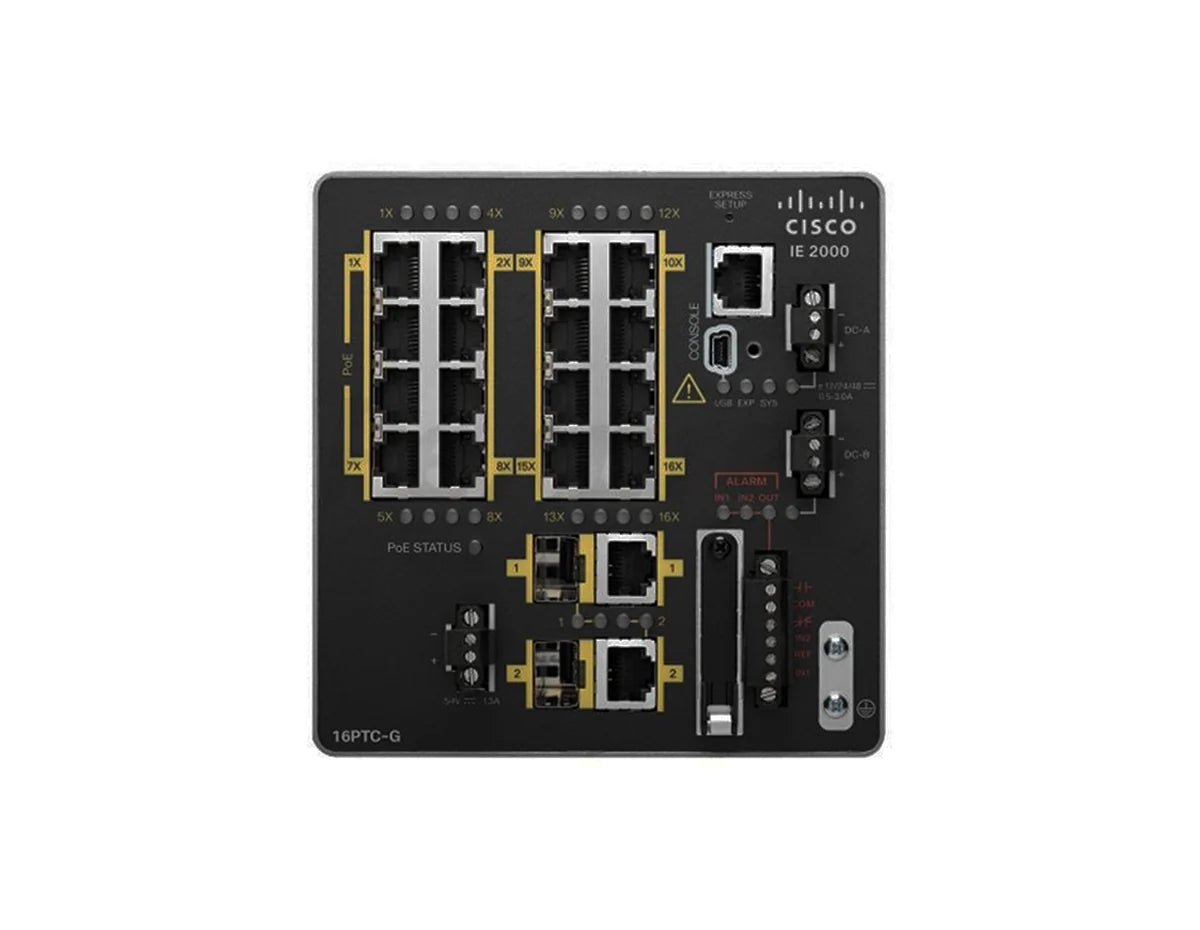

Cisco IE-2000-16PTC-G-L Industrial Ethernet Switch
The Cisco IE-2000-16PTC-G-L is a rugged and reliable industrial Ethernet switch designed to provide high-performance connectivity in challenging environments. This switch features 16 Fast Ethernet ports, 2 Gigabit combo ports (RJ-45/SFP), and 4 Fast Ethernet PoE ports, making it an ideal choice for powering and connecting industrial devices such as IP cameras, sensors, and controllers. The IE-2000-16PTC-G-L is built to withstand extreme conditions, ensuring continuous operation in demanding industrial settings while offering essential Layer 2 management features for network segmentation and traffic control.
Key Features:
-
16 × Fast Ethernet Ports: Delivers reliable data connectivity for a variety of industrial devices, ensuring efficient network communication.
-
2 × Gigabit Combo Ports: Offers flexible uplink options with RJ-45 and SFP connectivity, ensuring high-speed data transfer and network scalability.
-
4 × Fast Ethernet PoE Ports: Provides power and data to PoE-enabled devices, reducing cabling requirements and simplifying installation.
-
Ruggedized Design: Engineered to operate in harsh industrial environments, capable of withstanding extreme temperatures, shock, and vibration.
-
Layer 2 Management: Includes essential Layer 2 features such as VLANs, QoS, and IGMP snooping, providing flexibility and control over network traffic.
Technical Overview:
-
Recommended for: Industrial environments requiring durable, high-performance Ethernet connectivity with PoE support and flexible uplinks.
-
Ports: 16 × Fast Ethernet ports, 2 × Gigabit combo ports (RJ-45/SFP), 4 × Fast Ethernet PoE ports.
-
PoE Budget: Supported; size according to selected power supply.
-
Operating Temperature: Wide temperature range suitable for industrial applications.
-
Management: Web interface, CLI, and SNMP for easy network setup and monitoring.
-
Form Factor: Rugged, compact design suitable for space-constrained industrial environments.
You can check the related tab for the Cisco IE-2000-16PTC-G-L datasheet.
