[shortdesc]
- Catalyst 9200L
- 24-port 8 x mGig, 16 x 1G, 4 x 10G, PoE+
- DNA Advantage
[/shortdesc]
[properties]
| Properties |
C9200L-24PXG-4X-A |
| Description |
Catalyst 9200L 24-port 8xmGig, 16x1G, 4x10G, PoE+, Network Advantage |
| Product Family |
Catalyst 9200-L |
| Product Type |
Ethernet Switch |
| Number of Ports |
24 |
Downlinks total 10/100/1000
or PoE+ copper ports |
24 ports full PoE+ (8 mGig ports
up to 10G, 16 ports up to 1G |
| Uplink configuration |
4x 1/10G fixed uplinks |
| Cisco IOS Software |
Network Advantage |
Default primary AC
power supply |
PWR-C5-600WAC |
Available PoE power with
additional secondary
power supply |
740W |
| Fans |
Fixed redundant |
Chassis + FEP +
‚ Fan Dimensions (HxWxD Inches |
1.73 x 17.5 x 15.4 |
[/properties]
[specifications]
| Specifications |
C9200L-24PXG-4X-A |
| Console Ports |
RJ-45-to-DB9 cable for PC connections, USB-C adaptor, USB adaptor |
| DRAM |
2 GB |
| Flash Memory |
4 GB |
| Switching capacity |
272 Gbps |
| Forwarding rate‚ |
214.28 Mpps |
| MAC addresses |
16000 |
Operating Temperature
Up to 5,000 ft (1500 m |
-5°C to +45°C |
Operating Temperature
Up to 10,000 ft (3000 m |
-5°C to +40°C |
| Safety |
IEC 60950-1
UL 60950-1
CAN/CSA C22.2 No. 60950-1
EN 60950-1
AS/NZS 60950.1
Class I Equipment |
Electromagnetic compatibility
certifications |
47 CFR Part 15
CISPR 32 Class A
CNS 13438
EN 300 386*
EN 55032 Class A
EN61000-3-2
EN61000-3-3
ICES-003 Class A
KN 32
TCVN 7189 Class A
V-3 Class A
CISPR 35
EN 300 386*
EN 55035
KN 35
TCVN 7317 |
EMC
compliance |
FCC Part 15 (CFR 47 Class A
ICES-003 Class A
EN 55032 Class A
CISPR 32 Class A
AS/NZS 3548 Class A
BSMI Class A
VCCI Class A
CISPR 35
EN 55035, EN300 386*
EN 61000-3-2, EN 61000-3-3 |
Safety
compliance |
UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking |
| Environmental |
Reduction of Hazardous Substances (ROHS 5 |
[/specifications]
[accesories]
| Stacking Support |
StackWise-80 |
| Stacking bandwidth support |
80 Gbps |
| Stacking hardware‚ |
C9200L-STACK-KIT |
Number of
members |
8 |
| Supported stack members |
Other C9200L models with the same license level |
|
|
| Stacking accessories |
|
| C9200L-STACK-KIT |
Stack kit for C9200L SKUs only: Two data stack adapters and one data stack cable |
| STACK-T4-50CM |
Data stack 50 cm cable (default cable with Stack Kit |
| STACK-T4-1M |
Data stack 1 m cable |
| STACK T4-3M |
Data stack 3 m cable |
|
|
| Mounting Accessories |
|
| ACC-KIT-T1= |
Accessory kit with 19-inch Type 1 rack mount |
| RACK-KIT-T1= |
19, 23, 24 inches and ETSI Type 1 rack mount kit |
| 4PT-KIT-T2= |
4 Point rack mount kit New |
| C9K-MGNT-TRAY |
Magnet and Mounting Tray for compact switches |
| C9K-CMPCT-DIN-MNT |
DIN Rail Mount for compact switches |
| RACKMNT-19-CMPACT |
19-Inch Rack Mounting Brackets for compact switches |
| C9K-CMPCT-CBLE-GRD |
Cable guard for compact switches (for C9K-WALL-TRAY |
| C9K-WALL-TRAY |
Wall mount bracket for compact switches |
| C9K-CMPCT-DESK-MNT |
Under desk mount for compact switches |
[/accesories]

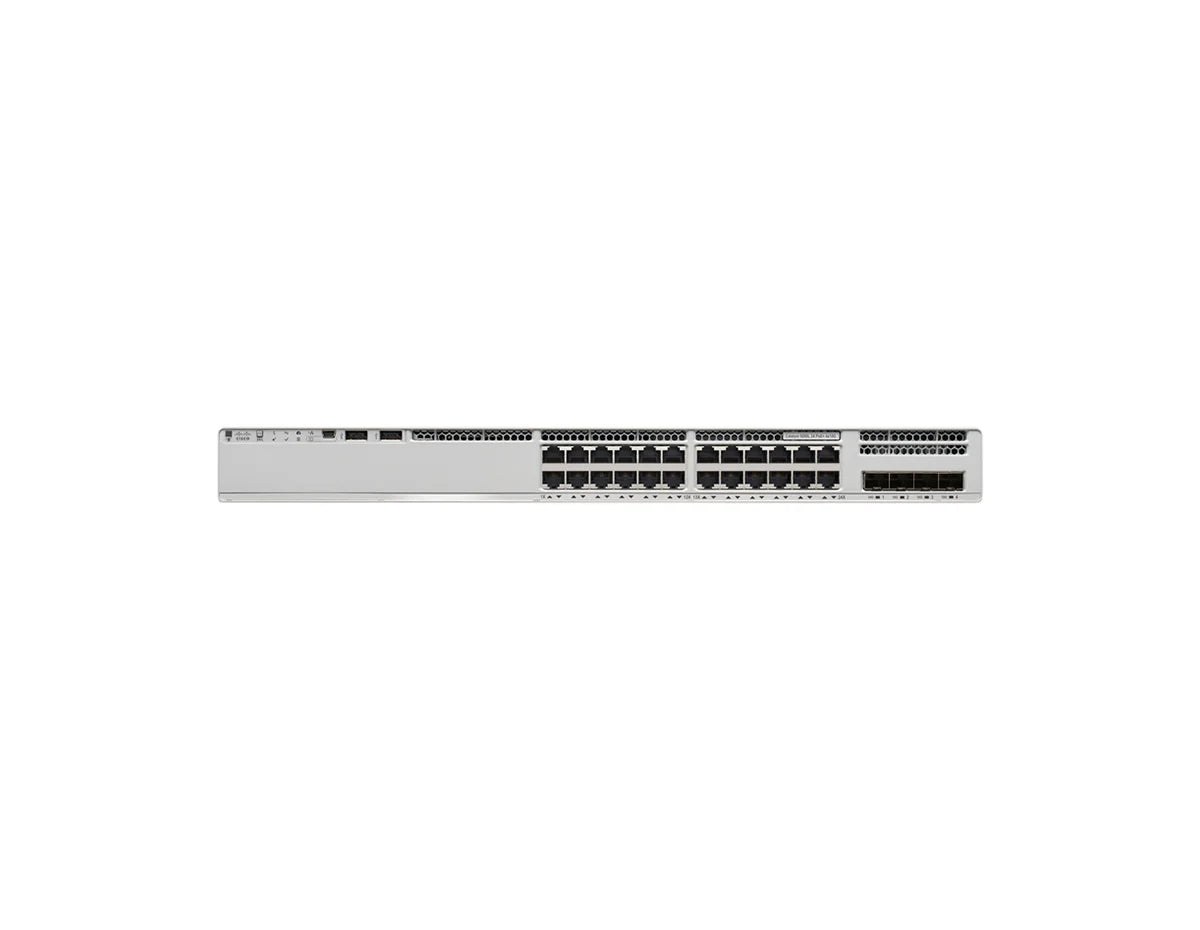

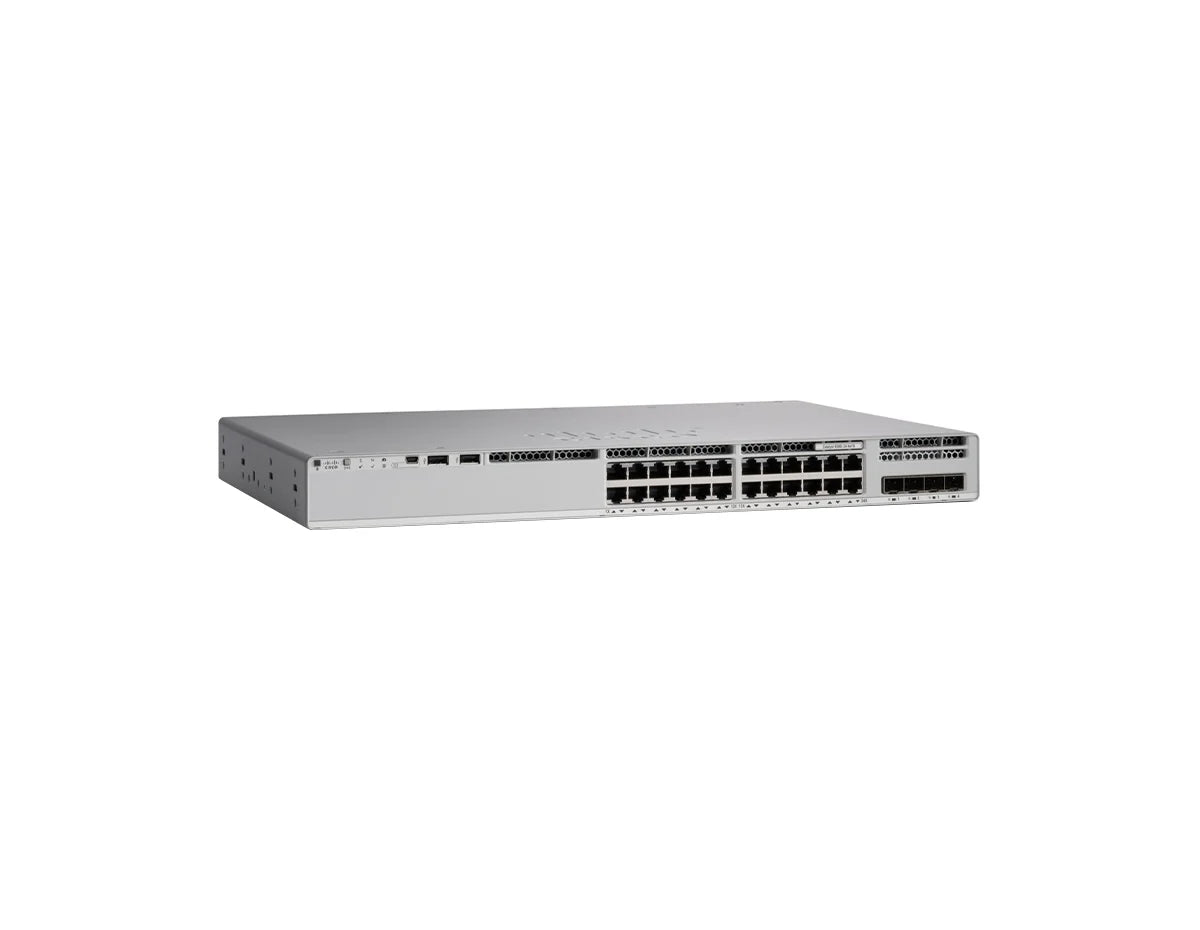

Cisco C9200L-24PXG-4X-A Switch
Expanding the power of intent-based networking, the Cisco Catalyst 9200 family of switches fits a broad set of deployments. While they offer management ease, there is no compromise in security. C9200 switches are also IT-simplified and IoT-enabled.
Key Specs of C9200L-24PXG-4X-A:
- Network Advantage License
- Full PoE+ capability
- Fix redundant fans
- 4 fixed uplinks
Please refer to the above tabs for detailed specifications and compatible accessories.
