[shortdesc]
- Control processor
- 10 GigE
- 40 Gigabit LAN
- Plug-in module
- for Catalyst 9400 Series chassis
[/shortdesc]
[properties]
| Properties |
Cisco C9400-SUP-1XL |
| Description |
Cisco Catalyst 9400 Series Supervisor v1XL Module |
| Product Family |
Catalyst 9400 |
| Product Type |
Supervisor Engine |
| Bandwidth per Slot for Different Chassis |
| C9404R |
240 Gbps per slot |
| C9407R |
120 Gbps per slot |
| C9410R |
80 Gbps per slot |
| Minimum Software Support |
| C9404R |
Cisco IOS XE 16.9.1 |
| C9407R |
Cisco IOS XE 16.6.2 |
| C9410R |
Cisco IOS XE 16.6.2 |
| Line Card and Module Support |
C9400-LC-48U
C9400-LC-48T
C9400-LC-48UX
C9400-LC-24XS
C9400-LC-48P
C9400-LC-24S
C9400-LC-48S
C9400-LC-48H
C9400-LC-48HN |
| Uplink ports options |
| Single supervisor |
8x 10 Gigabit Ethernet ports are active (ports 1 to 8) (2x 40 Gigabit Ethernet ports are disabled [ports 9 to 10])
2x 40 Gigabit Ethernet ports are active (ports 9 to 10) (8x 10 Gigabit Ethernet ports are disabled [ports 1 to 8])
4x 10 Gigabit Ethernet and 1x 40 Gigabit Ethernet ports are active (the other 4x 10 Gigabit Ethernet and 1x 40 Gigabit Ethernet ports are disabled) |
| Dual supervisors |
Active supervisor: 4x 10 Gigabit Ethernet ports are active (ports 1 to 4) (the other 4x 10 Gigabit Ethernet ports are disabled);
Standby supervisor: 4x 10 Gigabit Ethernet ports (ports 1 to 4) (the other 4x10 Gigabit Ethernet ports are disabled)
Active supervisor: 1x 40 Gigabit Ethernet port is active (port 9) (the other 1x 40 Gigabit Ethernet port is disabled);
Standby supervisor: 1x 40 Gigabit Ethernet port (port 9) (the other 1x 40 Gigabit Ethernet port is disabled)
Active supervisor: 1x 40 Gigabit Ethernet port is active (the other 1x 40 Gigabit Ethernet port and 8 x 10 Gigabit Ethernet ports are disabled);
Standby supervisor: 4x 10 Gigabit Ethernet ports (the other 4x10 Gigabit Ethernet ports and 2 x 40 Gigabit Ethernet are disabled) |
| Active supervisor C9400-SUP-1/XL/XL-Y power |
Maximum power (400W) |
| Standby supervisor C9400-SUP-1/XL/XL-Y power |
Maximum power (400W) |
| Dimensions (H x W x D) |
1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm) |
| Weight |
10 lb (4.5 kg) |
[/properties][specifications]
| Specifications |
C9400-SUP-1XL |
| Centralized wired capacity |
Up to 1.44 Tbps |
| Per-slot switching Capacity |
240 Gbps C9404R
120 Gbps C9407R
80 Gbps C9410R |
| Total number of MAC addresses |
Up to 64,000 |
| Total number of IPv4 routes (ARP plus learned routes) |
Up to 144,000 |
| FNF entries (v4/v6) |
Up to 384,000/192,000 |
| DRAM |
16 GB |
| Flash |
10 GB |
| VLAN Ids |
4096 |
| PVST Instances |
300 |
| STP Virtual Ports (Port* VLANs) for PVST |
13,000 |
| STP Virtual Ports (Port* VALNs) for MST |
13,000 |
| SSD capacity |
960 GB |
| Total Switched Virtual Interfaces (SVIs) |
1,000 |
| Jumbo frame |
9216 bytes |
| Forwarding rate |
‚ 900 Mpps for IPv4
‚ 782.6 Mpps for IPv6 (@95 byte) |
| IPv4 routing entries |
Up to 144,000 |
| IPv6 routing entries |
Up to 56,000 |
| Multicast routes |
Layer 2 up to 16,000
Layer 3 up to 32,000 |
| QoS hardware entries |
Up to 18,000 |
| Security ACL hardware entries |
Up to 18,000 |
| 2 Packet buffer |
96 MB |
| Operating temperature |
Normal operating* temperature and altitudes:
‚ 23‚° to 113‚°F (-5‚° to +45‚°C), up to 6000 feet (1800 m)
‚ 23‚° to 104‚°F (-5‚° to +40‚°C), up to 10,000 feet (3000 m)
*Minimum ambient temperature for cold startup is 0‚°C
Short-term** exceptional conditions:
‚ 23‚° to 131‚°F (-5‚° to +55‚°C), up to 6000 feet (1800 m)
‚ 23‚° to 122‚°F (-5‚° to +50‚°C), up to 10,000 feet (3000 m)
**Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences |
| Storage temperature |
40‚° to 158‚°F (-40‚° to 70‚°C) |
| Relative humidity operating and nonoperating noncondensing |
10 to 95 percent, noncondensing |
| Altitude |
-60 to 3000m |
| MTBF |
253,010 hours |
| Safety certifications |
‚ UL 60950-1
‚ CAN/CSA-C222.2 No. 60950-1
‚ EN 60950-1
‚ IEC 60950-1
‚ AS/NZS 60950.1
‚ IEEE 802.3 |
| Electromagnetic emissions certifications |
‚ 47 CFR Part 15
‚ CISPR22 Class A
‚ EN 300 386 V1.6.1
‚ EN 55022 Class A
‚ EN 55032 Class A
‚ CISPR 32 Class A
‚ EN61000-3-2
‚ EN61000-3-3
‚ ICES-003 Class A
‚ TCVN 7189 Class A
‚ V-3 Class A
‚ CISPR24
‚ EN 300 386
‚ EN55024
‚ TCVN 7317 |
| Environmental |
Reduction Of Hazardous Substances (ROHS) 5 |
[/specifications][accesories]
| Accessories |
| C9400-SSD-240GB |
Cisco Catalyst 9400 Series 240GB M2 SATA memory (Supervisor) |
| C9400-SSD-480GB |
Cisco Catalyst 9400 Series 480GB M2 SATA memory (Supervisor) |
| C9400-SSD-960GB |
Cisco Catalyst 9400 Series 960GB M2 SATA memory (Supervisor) |
[/accesories]

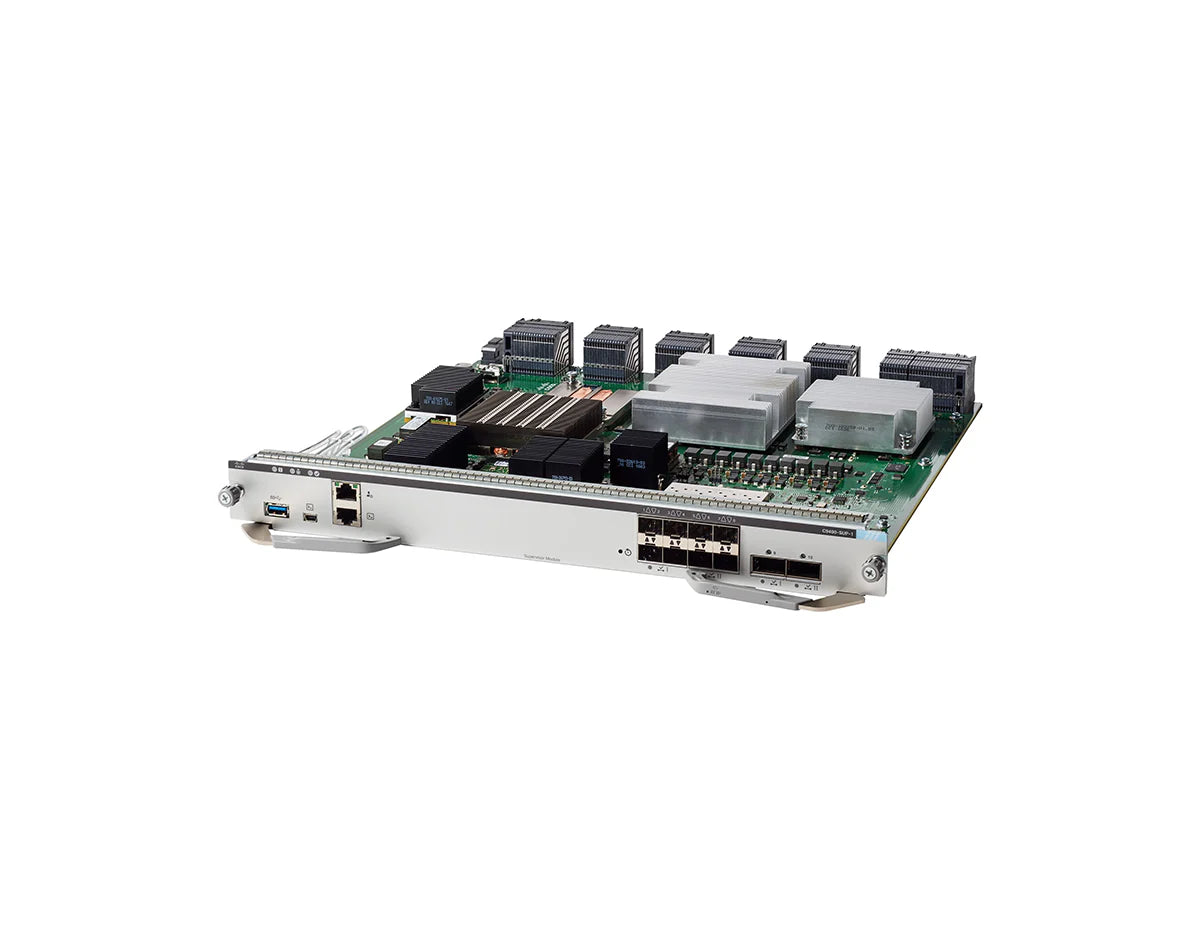

Cisco Catalyst C9400-SUP-1XL Supervisor Engine
The Cisco Catalyst C9400-SUP-1XL Supervisor Engine is a high-performance, advanced control module designed for the Cisco Catalyst 9400 Series modular switches. This supervisor engine provides enhanced processing power and network management capabilities, making it ideal for enterprise networks that demand superior scalability, security, and reliability. The C9400-SUP-1XL supports high-density deployments, ensuring your network can efficiently handle the increasing demands of modern digital infrastructure.
Key Features:
-
High-Performance Processing: Delivers robust processing power to manage complex network operations and support high-throughput applications.
-
Advanced Security: Integrated with Cisco TrustSec, MACsec encryption, and other advanced security protocols to safeguard your network.
-
High Availability: Supports redundant configurations to maximize uptime and ensure continuous network operation.
-
Scalable Architecture: Designed to scale with your network, supporting future growth and expansion without compromising performance.
-
Comprehensive Management: Fully manageable through Cisco DNA Center, offering centralized control, automation, and visibility across your network.
Technical Overview:
-
Recommended for: Large enterprise networks requiring advanced management, high availability, and secure operations.
-
Compatibility: Compatible with Cisco Catalyst 9400 Series modular switches.
-
Management: Managed through Cisco DNA Center, providing comprehensive network automation and monitoring.
-
Security: Features Cisco TrustSec, MACsec encryption, and other advanced security protocols to protect against threats.
-
High Availability: Supports redundant supervisor configurations to ensure maximum network uptime.
You can check the related tab for the C9400-SUP-1XL datasheet.
