[shortdesc] High-speed outdoor-ready thermal camera with a 35 mm F1.2 lens, 640×480 thermal sensor, <20 mK sensitivity, 30 fps thermal imaging, ARTPEC-8 SoC with DLPU analytics acceleration, and rugged IP66/67 & IK10-rated aluminum housing for responsive mid-to-long-range perimeter protection. [/shortdesc]
[properties]
| Model |
AXIS Q2112-E 35 mm 30 fps Thermal Camera (02610-001 |
| Product Type |
Thermal Camera |
| Image Sensor |
Uncooled microbolometer, 640×480 pixels, 17 μm; spectral range 8–14 μm |
| Lens |
Athermalized 35 mm, F1.2; horizontal FOV 17°; vertical FOV 13°; near focus distance 33 m (108 ft |
| Sensitivity |
NETD <20 mK @25 °C, F1.0 |
| System on Chip |
ARTPEC-8 with deep learning processing unit (DLPU |
| Memory |
2048 MB RAM, 8192 MB Flash |
| Power |
PoE IEEE 802.3af/802.3at Type 2 Class 4; typical 5.2 W, max 25.5 W; 10–28 V DC (typical 4.6 W, max 25.5 W |
| Connectors |
RJ45 10/100/1000 PoE; terminal block with 2 supervised and 2 unsupervised I/O (12 V DC out, 50 mA; 3.5 mm mic/line in; 3.5 mm line out; 2× RS485/RS422 full duplex; DC input |
| Operating Conditions |
-40 °C to 60 °C; up to 74 °C per NEMA TS 2; humidity 10–100% RH (condensing |
| Storage Conditions |
-40 °C to 65 °C; humidity 5–95% RH (non-condensing |
| Casing |
IP66/IP67, IK10, and NEMA 4X-rated aluminum housing; color white NCS S 1002-B |
| Dimensions |
See datasheet dimension drawing; EPA 0.05 m² (0.48 ft² |
| Weight |
3.3 kg (7.3 lb |
| Storage |
microSD/microSDHC/microSDXC card support; SD card encryption (AES-XTS-Plain64 256-bit; NAS recording |
| Certifications |
CE, CSA, UL/cUL, KC, RCM, VCCI; CISPR 32 Class A, CISPR 35; EN 50121-4; IEC 62236-4; FCC Part 15 Class A |
| Safety |
CAN/CSA/IEC/EN/UL 62368-1 ed.3; IS 13252 |
| Environmental Ratings |
IEC 60068-2-1/-2/-6/-14/-27/-78; IP66/IP67; IK10; ISO 21207 Method B; MIL-STD-810H (Methods 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 510.7, 512.6, 521.4; NEMA 4X; NEMA TS 2 (2.2.7–2.2.9 |
| Cybersecurity |
Axis Edge Vault with TPM 2.0, secure boot, encrypted filesystem, signed firmware, secure keystore, Axis device ID, OAuth 2.0, brute force delay protection |
[/properties]
[specifications]
| Video |
H.264, H.265, Motion JPEG; 640×480 scalable to 800×600; up to 30 fps; up to 20 streams; controllable frame rate; Zipstream; VBR/ABR/MBR |
| Image Settings |
Contrast, brightness, sharpness, exposure zones, local contrast, compression; rotation 0°/90°/180°/270°; corridor mode; mirroring; overlays; polygon privacy mask; EIS; thermal color palettes |
| Audio |
Two-way audio; AGC; 10-band graphic equalizer; external mic input (optional 5 V power; line in/out; network speaker pairing; LPCM, AAC-LC, G.711, G.726, Opus |
| Networking Protocols |
IPv4/IPv6, HTTP/HTTPS/HTTP/2, TLS, RTP/SRTP/RTSP, FTP/SFTP, CIFS/SMB, SMTP, mDNS, UPnP, SNMP v1/v2c/v3, DNS, NTP, PTP, TCP/UDP, IGMP, MQTT, SSH, LLDP, CDP, secure syslog |
| System Integration |
ONVIF Profiles G/M/S/T; VAPIX; ACAP; one-click cloud; AXIS Camera Station support |
| Event Conditions |
Audio detection; IP change; storage conditions; device status events; tampering; bitrate degradation; I/O; MQTT subscribe; schedules |
| Event Actions |
Trigger I/O; audio clip play/stop; MQTT publish; email/TCP/HTTP/HTTPS notifications; text overlay; pre/post-alarm buffering; SD/NAS recording; FTP/SFTP/HTTP uploads; SNMP traps; LED flash |
| Analytics |
Included: AXIS Video Motion Detection, AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, audio detection, active tampering alarm; Supported: AXIS Perimeter Defender; 3rd-party ACAP analytics |
| Pan/Tilt Support |
Guard tours with up to 256 presets (positioning unit sold separately |
| Environmental |
IP66/IP67, IK10, NEMA 4X; IEC 60068; MIL-STD-810H (Methods 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 510.7, 512.6, 521.4 |
| Security |
TPM 2.0, secure boot, signed firmware, TEE, MACsec, 802.1X, encrypted storage, password protection, brute force delay protection |
[/specifications]
[accesories]
| Included |
Camera, installation guide, terminal block connectors, connector guard, cable gaskets, owner authentication key |
| Optional Accessories |
AXIS TQ1818-E Positioning Unit; AXIS TQ1003-E Wall Mount |
[/accesories]

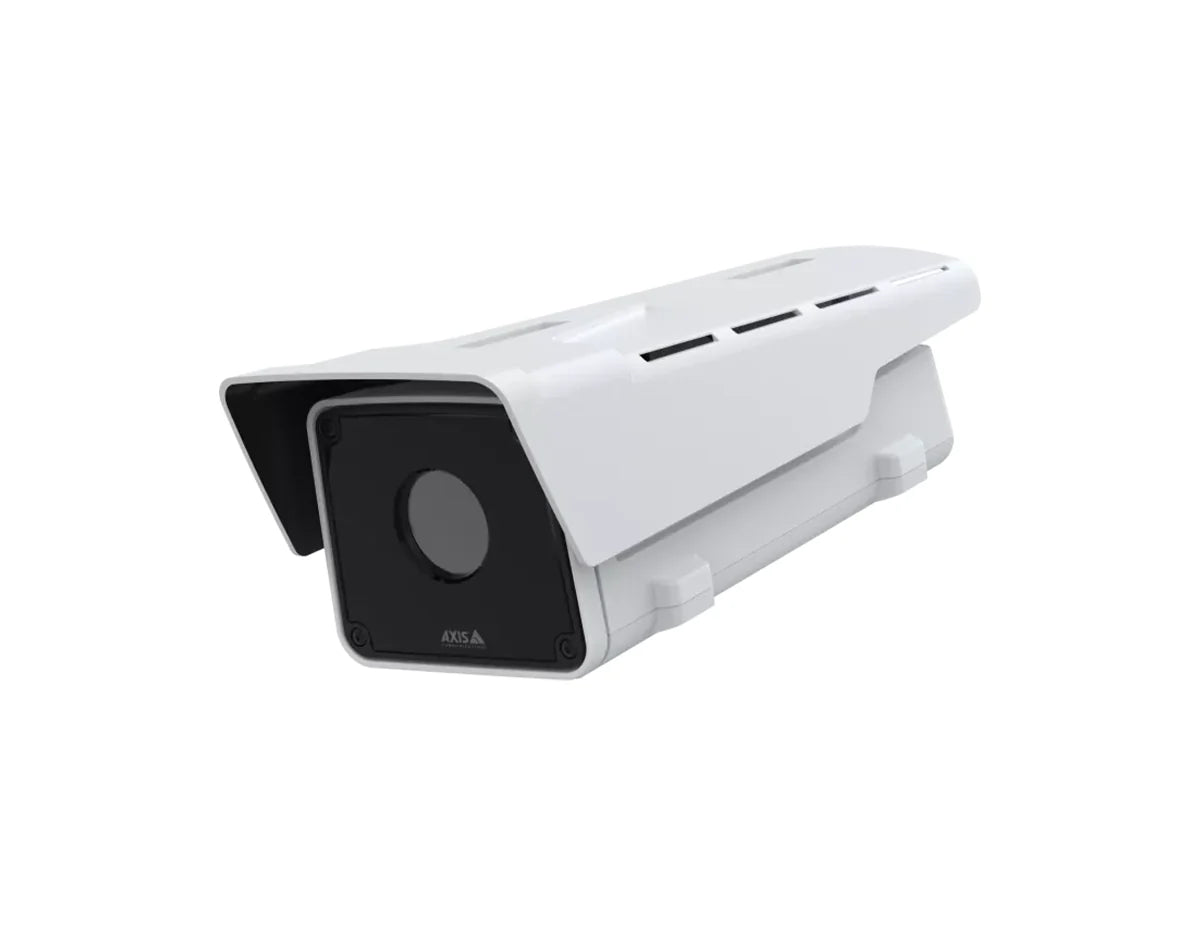

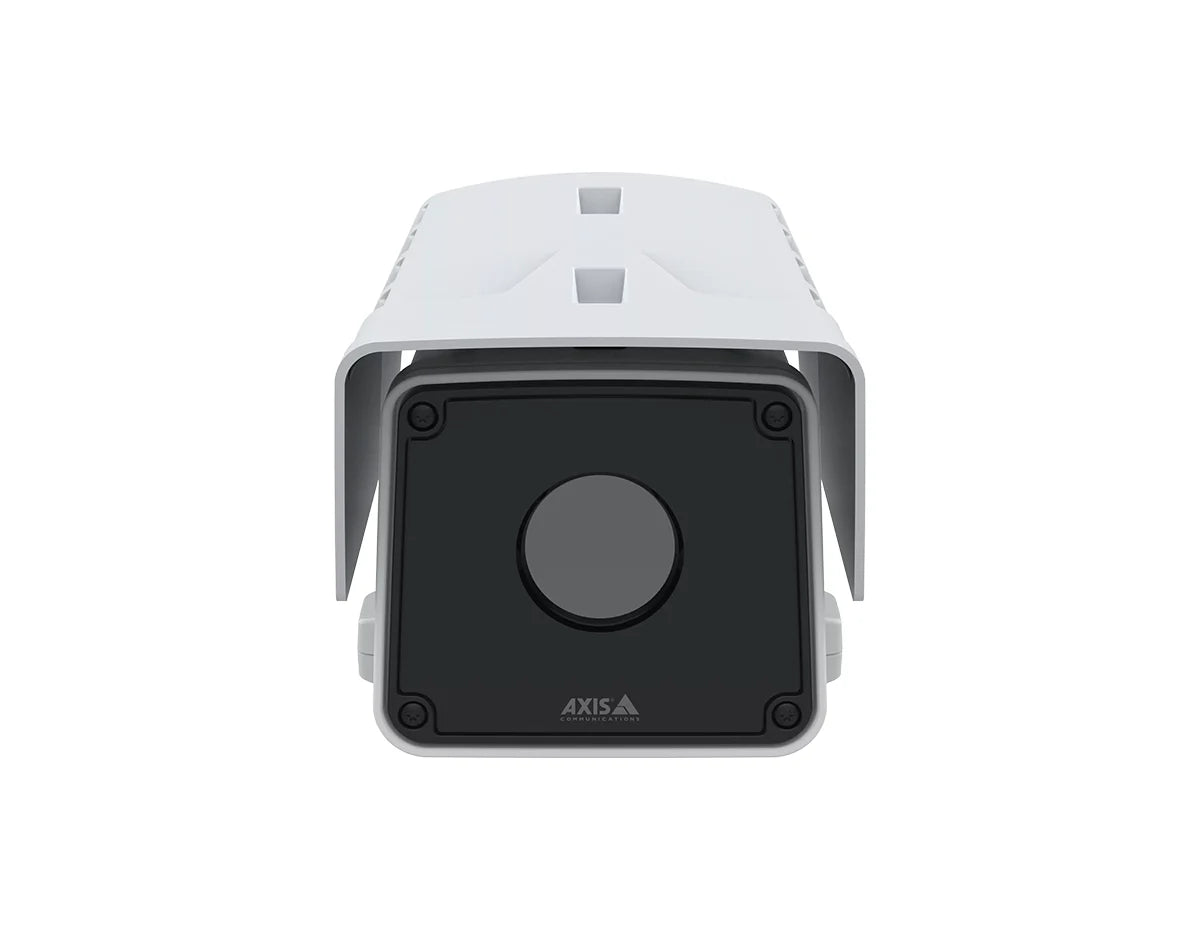

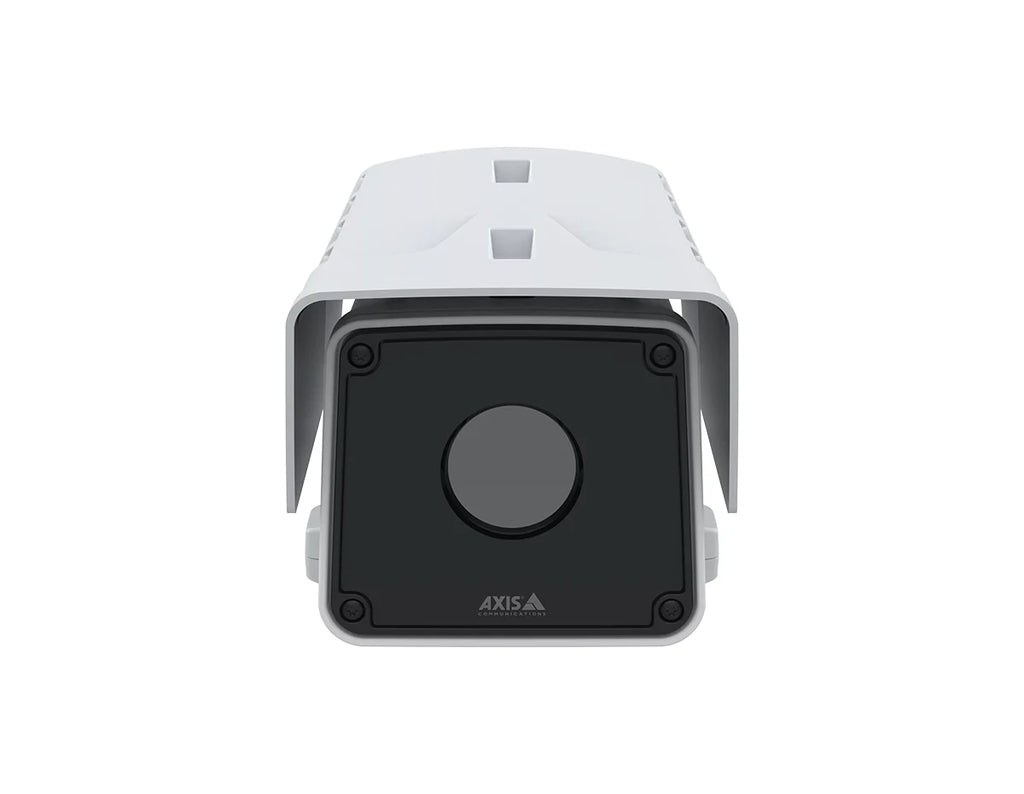

The AXIS Q2112-E 35 mm 30 fps Thermal Camera delivers fast, high-resolution thermal imaging suitable for dynamic perimeter monitoring and real-time detection scenarios. Its 640×480 thermal sensor combined with a 35 mm F1.2 athermalized lens provides clear thermal contrast and reliable mid-to-long-range detection, while the increased 30 fps frame rate improves object tracking and motion accuracy in fast-moving environments.
Powered by the ARTPEC-8 SoC with an integrated deep learning processing unit, this camera supports advanced analytics directly on the edge, enabling automated detection, classification, and event-driven workflows. With rugged IP66/IP67, IK10, and NEMA 4X protection and extensive environmental and MIL-STD-810H testing, it is designed for dependable 24/7 operation in extreme conditions. Its strong cybersecurity foundation and wide system integration support make it ideal for modern perimeter defense deployments.
High-Speed Thermal Imaging for Responsive Mid-to-Long-Range Perimeter Protection
- High-resolution 640×480 thermal sensor with 30 fps delivers smooth thermal video and enhanced motion tracking.
- 35 mm athermalized lens provides optimized detection coverage for mid-to-long-range applications.
- <20 mK thermal sensitivity supports clear contrast and improved detection in rain, fog, smoke, and total darkness.
- ARTPEC-8 with DLPU enables advanced analytics such as AXIS Perimeter Defender and 3rd-party ACAP apps.
- Outdoor-ready durability with IP66/IP67, IK10, NEMA 4X, and MIL-STD-810H ratings.
- Strong cybersecurity including TPM 2.0, secure boot, encrypted storage, and signed firmware.
- Edge-to-edge system integration with Axis audio devices for automated deterrence workflows.
Ideal Use Cases
- Fast-response perimeter detection and tracking for industrial and critical infrastructure sites.
- Airports, seaports, and large campuses requiring smooth thermal video for moving objects.
- Border and wide-area monitoring in low-visibility environments.
- Outdoor logistics zones where high frame rate improves operational awareness.
- Secure compounds needing privacy-preserving, analytics-driven thermal surveillance.
Technical Specifications Summary
-
Image sensor: 640×480 uncooled microbolometer, 17 μm
-
Lens: Athermalized 35 mm F1.2; HFOV 17°; VFOV 13°; near focus 33 m
-
Sensitivity: NETD <20 mK @25 °C
-
Video: Up to 30 fps; H.264/H.265/MJPEG; scalable to 800×600
-
Audio: Two-way audio; LPCM, AAC-LC, G.711, G.726, Opus
-
Power: PoE Type 2 Class 4; 10–28 V DC
-
Operating conditions: -40 °C to 60 °C; up to 74 °C NEMA TS 2
-
Durability: IP66/IP67, IK10, NEMA 4X, MIL-STD-810H
-
Cybersecurity: TPM 2.0, secure boot, encrypted filesystem, MACsec, 802.1X
Upgrade Your Operations
Strengthen your perimeter security with high-speed, analytics-ready thermal imaging that performs in all conditions.
