Descrizione
Overview

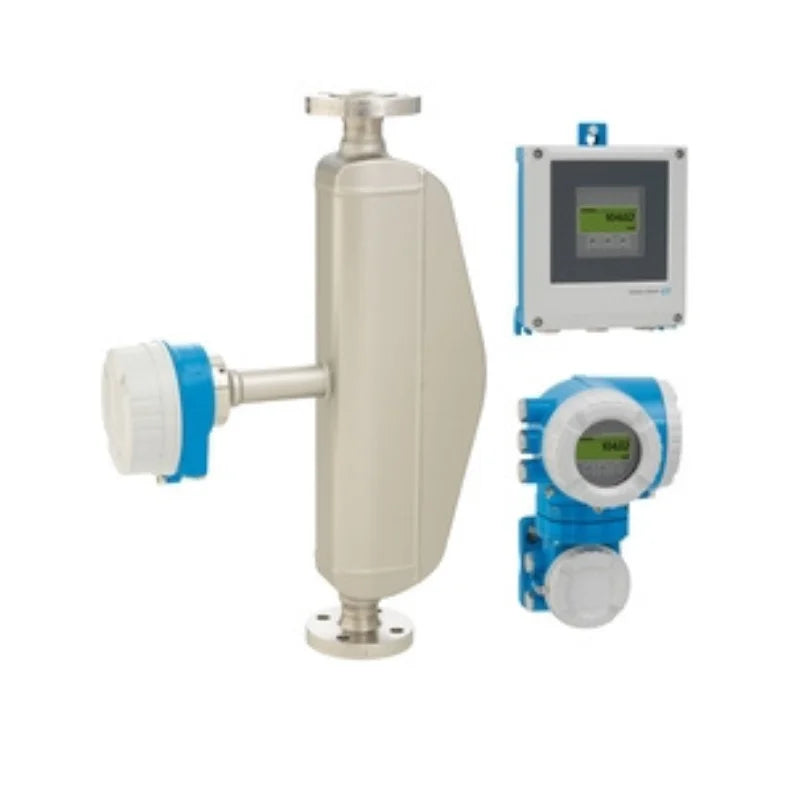

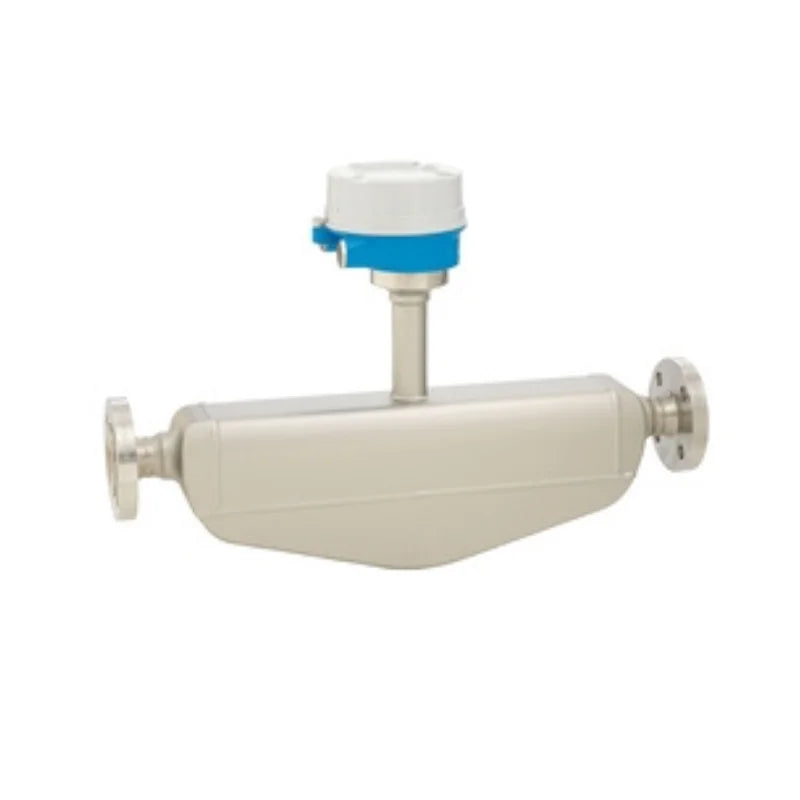

Endress+Hauser 8H5B Proline Promass H500 Coriolis Flowmeter is a chemically resistant single-tube flowmeter, as remote version with up to 4 I/Os.
Specs at a glance
* Max. measurement error Mass flow (liquid): ±0.1 % Volume flow (liquid): ±0.1 % Mass flow (gas, Tantalum only): ±0.5 % Density (liquid): ±0.0005 g/cm³ * Measuring range 0 to 70 000 kg/h (0 to 2570 lb/min) * Medium temperature range Tantalum: –50 to +150 °C (–58 to +302 °F) Zirconium: –50 to +205 °C (–58 to +401 °F) * Max. process pressure PN 40, Class 300, 20K * Wetted materials Measuring tube: Tantalum 2.5W; 702 (UNS R60702) Connection: Tantalum; 702 (UNS R60702)
Field of application
The highly accurate Promass H is destined for applications requiring maximum corrosion resistance and guarantees optimal safety for chemically aggressive fluids. With its innovative remote transmitter Promass H 500 maximizes installation flexibility and operational safety in demanding environments. Heartbeat Technology enables process safety at all times. *Measuring principle operates independently of physical fluid properties such as viscosity or density *Highly accurate measurement of liquids and gases in applications requiring highest corrosion resistance
Device properties * Measuring tube made of Tantalum, Zirconium * Nominal diameter: DN 8 to 50 (3/8 to 2") * Medium temperature up to +205 °C (+401 °F) * Remote version with up to 4 I/Os * Backlit display with touch control and WLAN access * Standard cable between sensor and transmitter
Benefits
* Maximum safety for chemically aggressive fluids – corrosion-resistant wetted parts * Fewer process measuring points – multivariable measurement (flow, density, temperature) * Space-saving installation – no in/outlet run needs * Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet * Reduced complexity and variety – freely configurable I/O functionality * Integrated verification – Heartbeat Technology
Specification
item
value
Warranty
1 Year
Customized support
OEM
Place of Origin
Switzerland
Brand Name
Endress+Hauser
Model Number
Promass H500
Type
Coriolis meters, Coriolis flowmeter
Measuring Principle
Coriolis
Product Headline
Chemically resistant single-tube flowmeter, as remote version with up to 4 I/Os. Highly accurate measurement of liquids and gases in applications requiring highest corrosion resistance.
Sensor Features
Maximum safety for chemically aggressive fluids – corrosion‐resistant wetted parts. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs. Measuring tube made of Tantalum, Zirconium. Nominal diameter: DN 8 to 50 (³⁄₈ to 2"). Medium temperature up to +205 °C (+401 °F).
Transmitter Features
Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Remote version with up to 4 I/Os. Backlit display with touch control and WLAN access. Standard cable between sensor and transmitter.
AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonat
Degree Of Protection
Sensor remote version (standard): IP66/67, type 4X enclosure Sensor remote version (option): IP69. Transmitter remote version: IP66/67, Type 4X enclosure
Display/Operation
4-line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible
Outputs
4 outputs: 4-20 mA HART (active/passive) 4-20 mA WirelessHART 4-20 mA (active/passive) Pulse/frequency/switch output (active/passive) Double pulse output (active/passive) Relay output
Inputs
Status input 4-20 mA input
Digital Communication
HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA
Power Supply
DC 24 V AC 100 to 230 V AC 100 to 230 V / DC 24 V (non-hazardous area)
Hazardous Area Approvals
ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, KC
Product Safety
CE, C-Tick, EAC marking
Metrological Approvals And Certificates
Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
Marine Approvals And Certificates
PED, CRN
Material Certificates
3.1 material
