[shortdesc]
- Managed, Rack-mountable, 24 x 1G ports, 4 x 10G SFP+ Modular Uplinks, No PoE (Data Only), Layer 2
[/shortdesc]
[properties]
| Properties |
WS-C2960L-24TQ-LL |
| Description |
24 port 10/100/1000 Ethernet ports, 4 x 10G SFP+ |
| Product Family |
Catalyst 2960-L |
| Product Type |
Ethernet Switch |
| Number of Ports |
24 |
| Uplink Interfaces |
4 SFP+ |
| Available PoE power |
No |
| Fanless |
Yes |
| Height |
1.73 x 9.45 x 17.5 |
[/properties]
[specifications]
| Specifications |
WS-C2960L-24TQ-LL |
| Console Ports |
1x RJ-45 Ethernet
1x USB mini-B
1x USB-A port for storage and Bluetooth console |
| CPU |
ARMv7 800 MHz |
| DRAM |
512 MB |
| Flash Memory |
256 MB |
| Forwarding Bandwidth |
1G: 28 Gbps
10G: 64 Gbps |
| Switching Bandwidth |
1G: 56 Gbps
10G: 128 Gbps |
| MAC addresses |
16000 |
| Maximum Active VLANs |
256 |
Operating Temperature
Up to 5,000 ft (1500 m) |
-5 to 45 degree C |
Operating Temperature
Up to 10,000 ft (3000 m) |
-5 to 45 degree C |
| Safety |
UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1
Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1 |
| EMC: emissions |
47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class
A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438
Class A |
| EMC: immunity |
EN55024 (including EN 61000-4-5), CISPR24, EN300386, KN24 |
| Environmental |
Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
| Telco |
Common Language Equipment Identifier (CLEI) code |
| U.S. Government certifications |
USGv6 and IPv6 Ready Logo |
| Ethernet interfaces |
10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted Pair (UTP)
cabling
100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
| Telnet - SSH |
Yes |
| TACACS, TACACS+, Radius |
Yes |
[/specifications]
[accesories]
| Part Number |
Description |
| CAB-CONSOLERJ45 |
Console Cable 6 Feet with RJ-45 |
| CAB-CONSOLEUSB |
Console Cable 6 Feet with USB Type A and mini-B Connectors |
| PWR-CLP |
Power Cable Restraining Clip |
| RCKMNT-1RU-2KX |
1RU Rack Mount Kit for 2960-X, 2960-XR, and 2960-L |
| RCKMNT-REC-2KX |
Recessed 1RU rack mount for 2960X, 2960-XR, and 2960-L |
[/accesories]

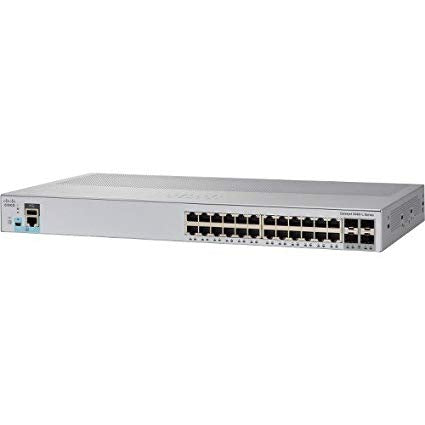

Cisco Catalyst WS-C2960L-24TQ-LL Switch
The Cisco Catalyst WS-C2960L-24TQ-LL Switch provides reliable and scalable Gigabit Ethernet access with 24 Ethernet ports and 4 SFP+ uplinks, designed for growing networks in enterprise, small business, and branch office environments. This Layer 2 switch offers robust security features, energy efficiency, and quiet fanless operation, making it a perfect fit for offices and other noise-sensitive environments.
Key Features:
-
24 x Gigabit Ethernet Ports: Offers fast, reliable connectivity for a wide range of devices.
-
4 SFP+ Uplinks: Provides flexible, high-speed fiber connections for network growth and expansion.
-
Fanless Design: Ensures silent operation in noise-sensitive work environments.
-
Enhanced Security Features: Includes 802.1X, BPDU Guard, and Access Control Lists (ACLs) to secure your network.
-
Energy Efficiency: Complies with IEEE 802.3az standards for reduced power consumption.
Technical Overview:
-
Recommended for: Small to medium-sized businesses, branch offices, and retail environments.
-
Ports: 24 x 10/100/1000 Mbps Gigabit Ethernet ports.
-
Uplink Modules: 4 x 10G SFP+ uplinks.
-
Switching Capacity: 128 Gbps.
-
Forwarding Rate: 95.23 Mpps.
-
Layer 2 Features: VLANs, Spanning Tree, and Access Control Lists (ACLs) for enhanced traffic management.
-
Management: Web-based UI, CLI, SNMP, and Cisco DNA Center.
-
Licensing: LAN Lite.
-
Energy Efficiency: Supports IEEE 802.3az standards for energy-saving operations.
You can check the related tab for the WS-C2960L-24TQ-LL datasheet.
