[shortdesc]
- Switch, Managed, 24x 10/100/1000 Ethernet ports, 4x 10G SFP+ uplinks
[/shortdesc] [properties]
| Properties |
C1000-24T-4X-L |
| Description |
24x 10/100/1000 Ethernet ports, 4x 10G SFP+ uplinks |
| Product Family |
Catalyst 1000 |
| Product Type |
Network Switch |
| Number of Ports |
24 |
| Uplink Interfaces |
4 SFP+ |
| Available PoE power |
No |
| Fanless |
Yes |
| Width |
17.29" |
| Depth |
16.14" |
| Height |
1.712" |
[/properties]
[specifications]
| Specifications |
C1000-24T-4X-L |
| Console Ports |
1x RJ-45 (console)
1x USB-A port for storage and Bluetooth console |
| CPU |
ARM v7 800 MHz |
| DRAM |
512 MB |
| Flash Memory |
256 MB |
| Forwarding Rate |
95.23 Mpps |
| Switching Capacity |
128 Gbps |
| MAC addresses |
16000 |
| Maximum Active VLANs |
256 |
| Operating Temperature |
0 to 40 °C |
| Altitude |
Up to 10,000 ft (3,000 m) |
| Safety |
UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1, GB 4943.1-2011 |
| EMC: emissions |
47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A |
| EMC: immunity |
EN55024 (including EN 61000-4-5), EN300386, KN35 |
| Environmental |
Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
| Telco |
Common Language Equipment Identifier (CLEI) code |
| U.S. Government certifications |
USGv6 and IPv6 Ready Logo |
| Telnet - SSH |
Yes |
| TACACS, TACACS+, Radius |
Yes |
[/specifications]
[accesories]
| Part Number |
Description |
| PWR-CLP |
Power Cable Restraining Clip |
| RCKMNT-1RU-2KX |
Rackmount kit for 1 RU for C1000, 2960-X and 2960-XR (19/23/24/ETSI) |
| CAB-CONSOLE-RJ45 |
Console Cable 6 Feet with RJ-45 |
| CAB-CONSOLE-USB |
Console Cable 6 Feet with USB Type A and mini-B Connectors |
[/accesories]

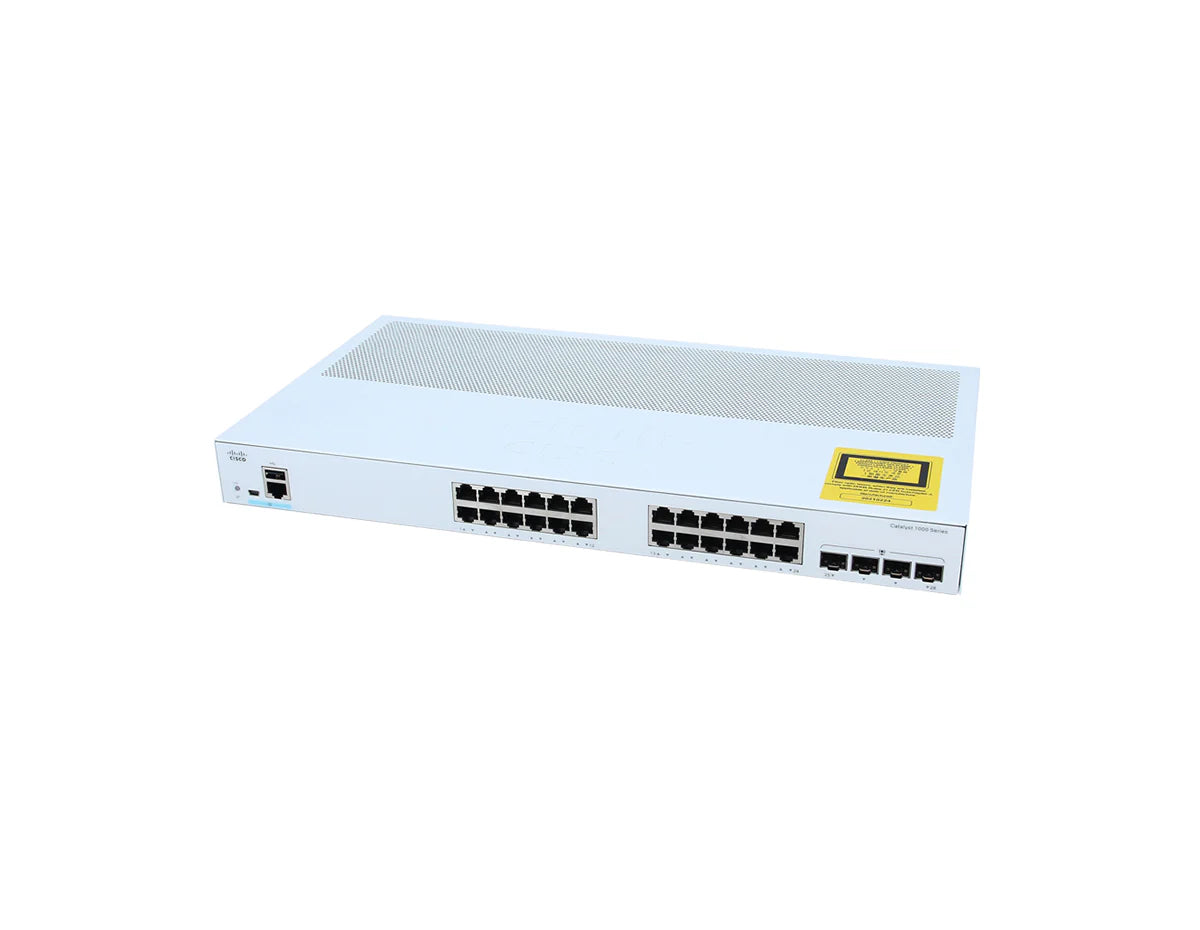

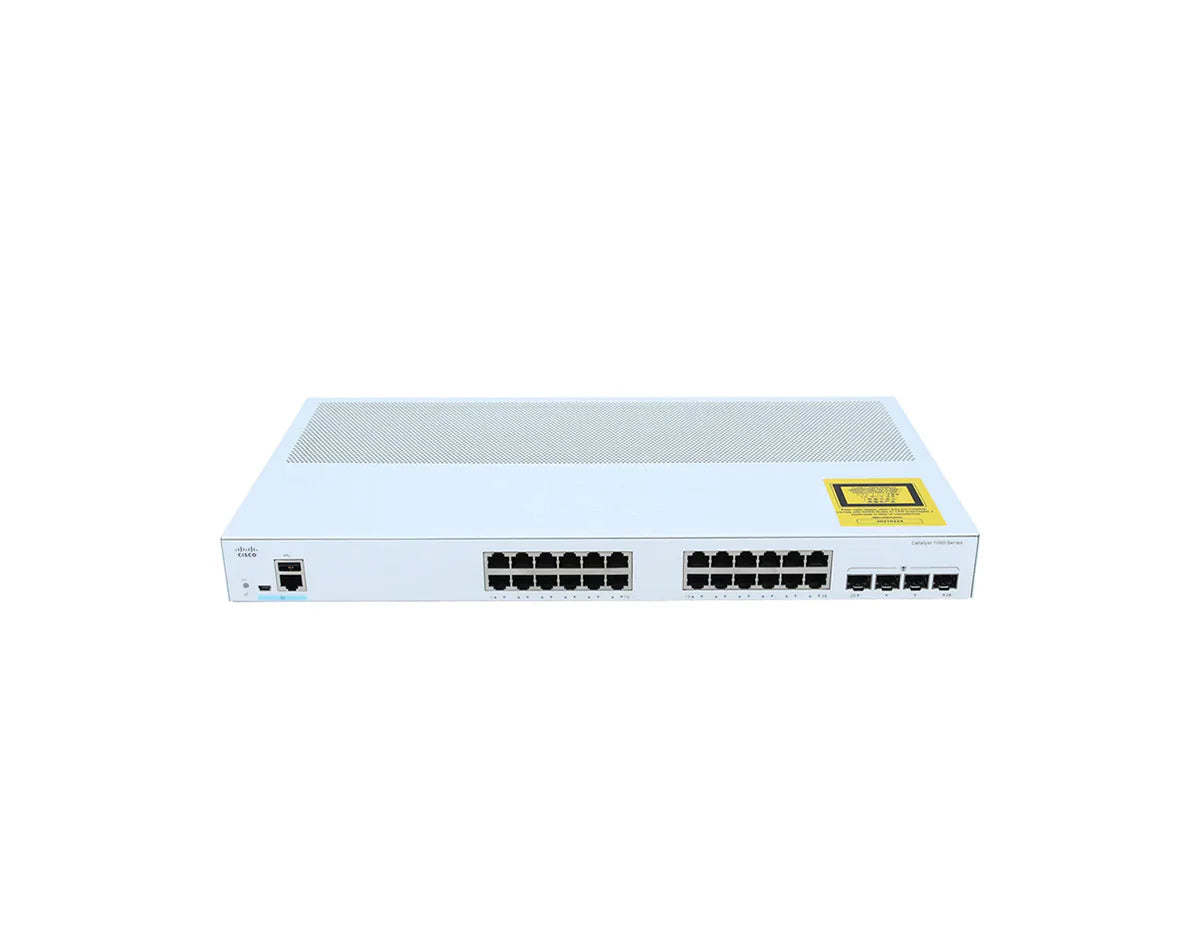

Cisco Catalyst C1000-24T-4X-L Switch
The Cisco Catalyst C1000-24T-4X-L Switch is a high-performance and reliable networking solution designed for small to medium-sized businesses and branch offices. Featuring 24 Gigabit Ethernet ports and 4 SFP+ uplinks, this switch provides robust and scalable connectivity, supporting 10G uplinks for enhanced network performance. The C1000-24T-4X-L is engineered to deliver consistent operation and includes advanced security features to protect your network infrastructure.
Key Features:
-
24 x Gigabit Ethernet Ports: Provides fast and reliable network connectivity for a wide range of devices.
-
4 x SFP+ Uplinks: Offers high-speed 10G uplink options for connecting to other switches or network devices, ensuring network scalability.
-
Simple Management: Supports both web-based UI and Command-Line Interface (CLI) management for easy configuration and monitoring.
-
Reliable Design: Built to deliver consistent performance for critical network deployments.
-
Enhanced Security: Features such as 802.1X, BPDU Guard, and SPAN for improved network security and monitoring.
Technical Overview:
-
Recommended for: Small to medium-sized businesses, branch offices, and environments requiring reliable and scalable 10G networking solutions.
-
Ports: 24 x 10/100/1000 Mbps Gigabit Ethernet ports with 4 SFP+ uplinks.
-
Switching Capacity: 128 Gbps.
-
Forwarding Rate: 95.23 Mpps.
-
Management: Web-based GUI and CLI for simplified network management.
-
Security: Includes 802.1X, BPDU Guard, and SPAN for comprehensive security and monitoring.
-
Energy Efficiency: Designed to optimize energy usage while delivering powerful performance.
You can check the related tab for the C1000-24T-4X-L datasheet.
