[shortdesc]

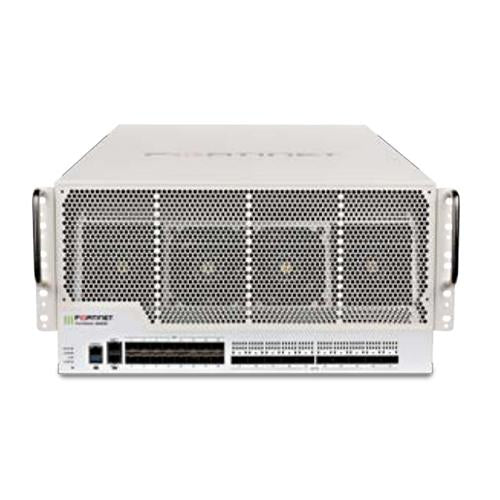

- 10x 100GE QSFP28 slots and 16x 10GE SFP+ slots, 2 x GE RJ45 Management Ports, SPU NP6 and CP9 hardware accelerated, and 3 AC power supplies
[/shortdesc]
[properties]
| Properties |
FG-3980E |
| Description |
10x 100 GE QSFP28 slots and 16x 10 GE SFP+ slots, 2x GE RJ45 management ports, SPU NP6 and CP9 hardware accelerated, and 3 AC power supplies.
|
| Product Family |
High End Firewalls |
| Product Type |
Firewall |
| GE RJ45 Ports |
- |
| GE RJ45 Management/DMZ/HA Ports |
2 |
| 100 GE QSFP28 / 40 GE QSFP+ Slots |
10 |
| 40 GE SFP+ Slots |
- |
| 10 GE SFP+ (Ultra-low Latency) |
16 |
10 GE SFP+ / GE SFP Slots
|
- |
| GE SFP Slots |
- |
| GE RJ45 WAN Port |
- |
| USB Port |
1 |
| Console (RJ45) |
1 |
| Internal Storage |
- |
| Included Transceivers |
2x SFP+ (SR 10GE) |
[/properties][specifications]
|
Firewall Throughput (1518 / 512 / 64 byte, UDP)
|
1.05 Tbps / 1.05 Tbps / 680 Gbps
|
| Firewall Latency (64 byte UDP packets) |
4.00 μs |
| Firewall Throughput (Packets Per Second) |
1020 Mpps |
| Concurrent Sessions (TCP) |
160 Million |
| New Sessions/Second (TCP) |
800.000 |
| Firewall Policies |
200.000 |
| IPsec VPN Throughput (512 byte packets) |
400 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
40000 |
| Client-to-Gateway IPsec VPN Tunnels |
200000 |
| SSL-VPN Throughput |
9.5 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum) |
30000 |
| SSL Inspection Throughput |
26 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) |
17000 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) |
12 Million |
| Application Control Throughput |
55 Gbps |
| IPS Throughput |
32 Gbps |
| NGFW Throughput |
28 Gbps |
| Threat Protection Throughput |
20 Gbps |
| CAPWAP Throughput |
14 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 500 |
| Maximum Number of FortiSwitches Supported |
300 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) |
8192 / 4096 |
| Maximum Number of FortiTokens |
20000 |
| Maximum Number of Registered FortiClients |
- |
| High Availability Configurations |
Active/Active, Active/Passive, Clustering |
| Dimensions in. |
8.8 x 17.2 x 27.3 |
| Form Factor |
Rack Mount, 5 RU |
| Power Required |
100240V AC, 5060 Hz |
| Maximum Current |
12A@100V, 10A@240V
|
| Power Consumption (Average / Maximum) |
1172 / 2350 W |
| Operating Temperature |
32104°F (040°C) |
| Regulatory Compliance |
FCC Part 15 Class A, RCM, VCCI, CE, UL/ cUL, CB
|
| Certifications |
USGv6/IPv6 |
[/specifications][accesories]
| FN-TRAN-LX |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
|
| FN-TRAN-GC |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots.
|
| FN-TRAN-SX |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots.
|
| FN-TRAN-SFP+SR |
10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-SFP+LR |
10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots.
|
| FN-TRAN-SFP+GC |
10 GE SFP+ RJ45 transceiver module for systems with SFP+ slots.
|
| FN-TRAN-SFP+ER |
10 GE SFP+ transceiver module, extended range for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-QSFP+SR |
40 GE QSFP+ transceiver module, short range for all systems with QSFP+ slots
|
| FN-TRAN-QSFP+LR |
40 GE QSFP+ transceiver module, long range for all systems with QSFP+ slots.
|
| FN-TRAN-QSFP28-SR |
100 GE QSFP28 transceivers, 4 channel parallel fiber, short range for all systems with QSFP28 slots.
|
| FN-TRAN-QSFP28-LR |
100 GE QSFP28 transceivers, 4 channel parallel fiber, long range for all systems with QSFP28 slots
|
| FN-TRAN-QSFP28-CWDM4 |
100 GE QSFP28 transceivers, LC connectors, 2KM for all systems with QSFP28 slots.
|
| FG-7040E-PS-AC |
1500 W AC power supply module for FG-7030E, FG-7040E, FG-6300/6301F, FG-6500/6501F, FG-3960E, FG-3980E (not compatible for use with FG-7060E).
|
[/accesories]
