Description
Quick Specs
1U rack server
Processor | Max: 2 or 8 Cores1 x Intel Xeon E-2400 series processor or
1 x Intel Pentium G7400/G7400Ts
4 DDR5 UDIMM 4400 MT/s
Supports unregistered ECC DDR5 DIMMs only
2 x 1GbE with BCM5720 LAN controller
Storage | Max: 30.72TB2x 3.5" cable SAS/SATA HDD, Max 32 TB
6x 2.5" hot-plug SAS/SATA HDD/SSD, Max 46.08TB
Software Controller: S160
Internal Controllers: HBA355i Adpt, PERC H355 Adpt, PERC H755 Adpt
External HBAs (non-RAID): HBA355e Adpt
Boot Optimized Storage Subsystem (BOSS-N1) HWRAID 2 x M.2 SSDs
Internal USB 3.0
2x PCIe 4.0
1 x8 Gen4 (x16 connector) low profile, half length
1 x8 Gen4 (x8 connector) low profile, half length
None
Remote Management:iDRAC9 with Lifecycle Controller
- Dell PowerEdge R210
- Dell PowerEdge R210 II
- Dell PowerEdge R220
- Dell PowerEdge R230
- Dell PowerEdge R240
- Dell PowerEdge R250
- Dell PowerEdge R260
(Click to View)
Ideal for:
- Data Analytics
- Edge Servers
R260 is the newly-designed short-depth rack server with filter bezel for NearEdge customers. Featuring the latest Intel Xeon-E 2400 series processors, DDR5 memory, NVMe BOSS, and Energy Star 4.0 PSU, the R260 is ready to support customers growing businesses.
For Near-Edge applications including deployment in warehouses, retail offices, or a simple desk or shelf, the R260 adapts to any environment with its short-depth, 17-inch chassis. In addition, the R260 is equipped with an easy-to-manage filter bezel that shields the inner hardware from dust and grease, ensuring unobstructed airflow to main components resulting in fewer failures or performance issues, better acoustics, and efficient power consumption.
Affordable Entry Rack Server with Enterprise-level Features and Capabilities
Affordability does not compromise performance. The R260 is an enterprise-level server that features reliable hardware, latest-generation processors and memory, advanced boot options and secure IT infrastructure. In addition, the R260 supports different upgrade options for both hardware and software to meet a wide range of customer needs.

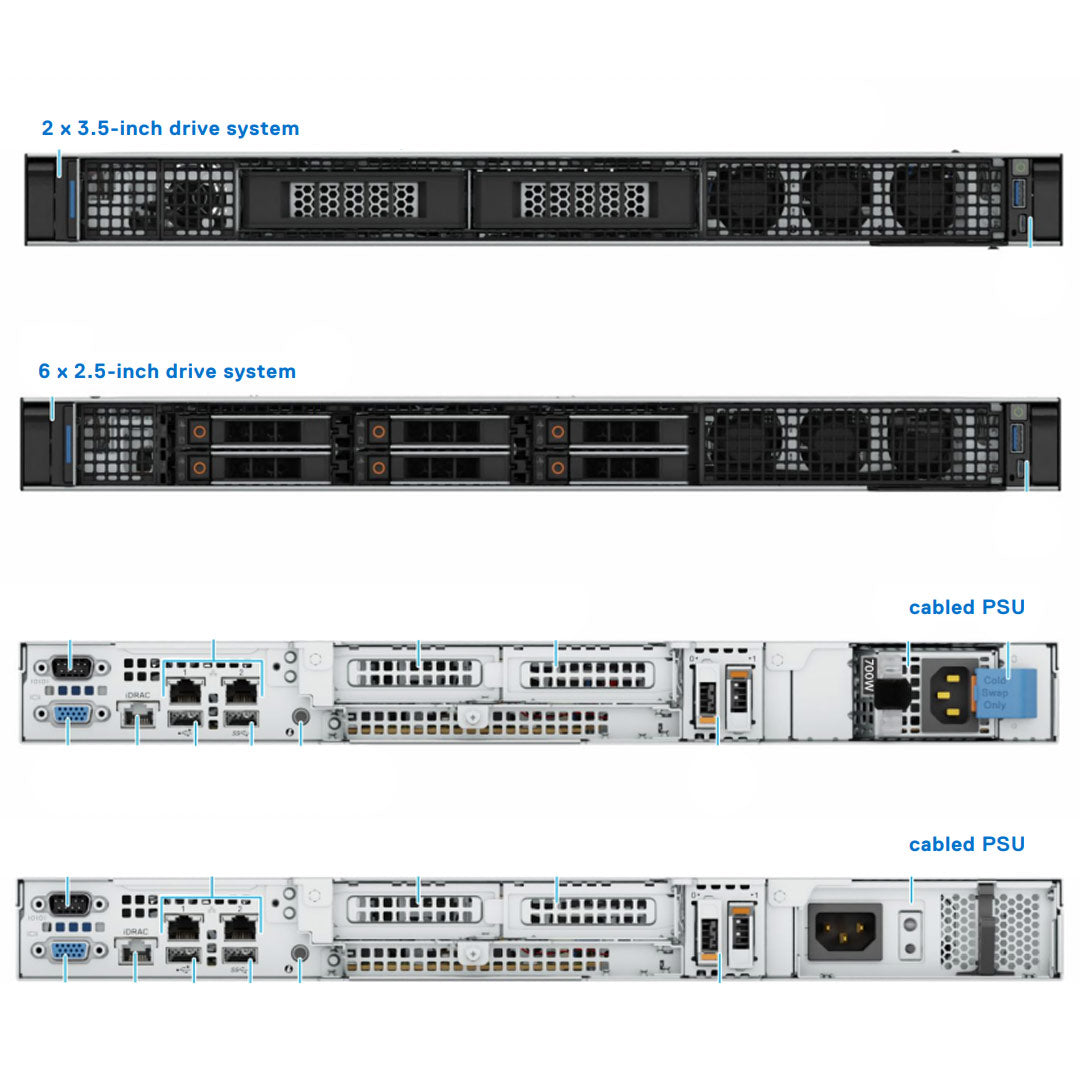

- 6 x 2.5" SAS/SATA RAID
- 2 x 3.5" SAS/SATA RAID

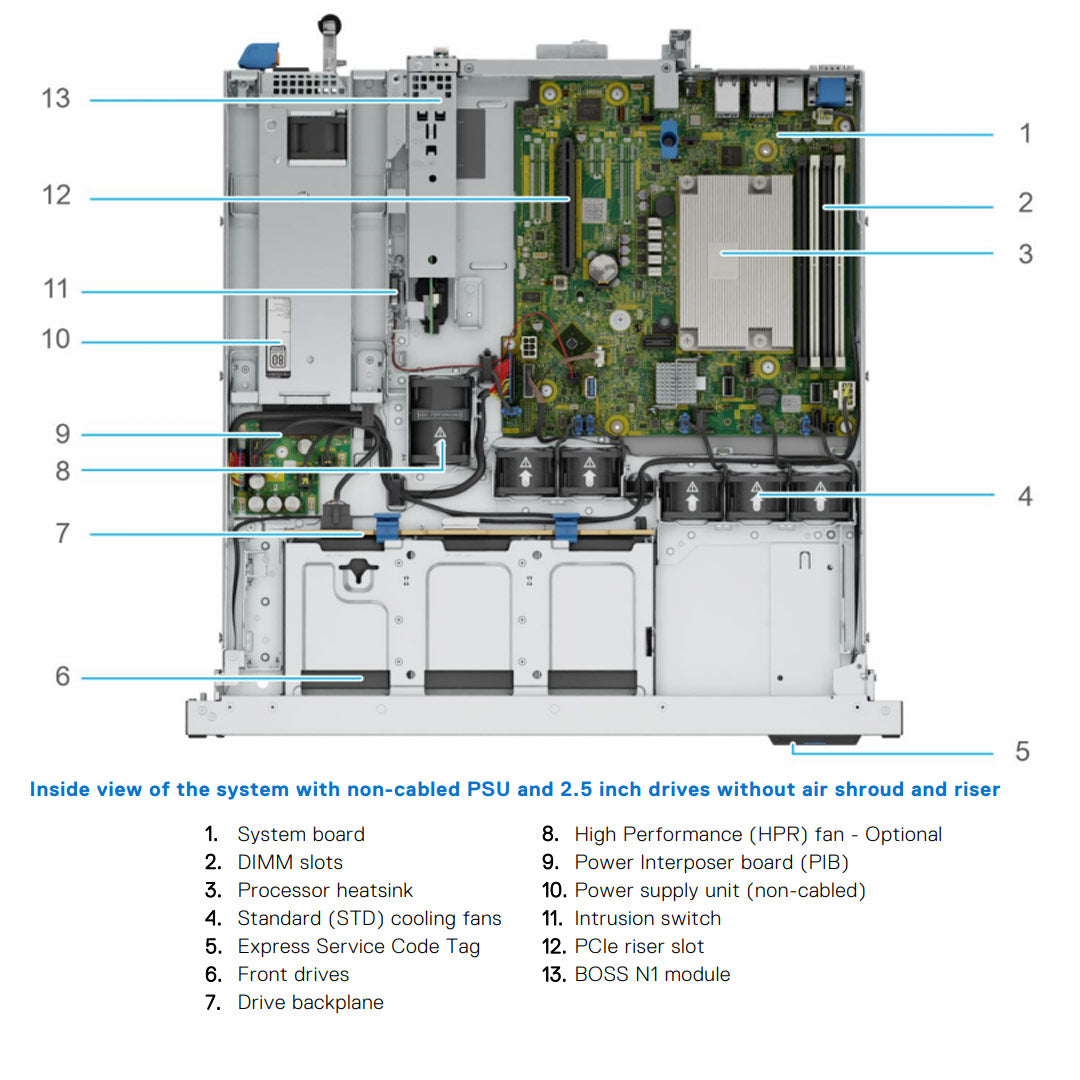

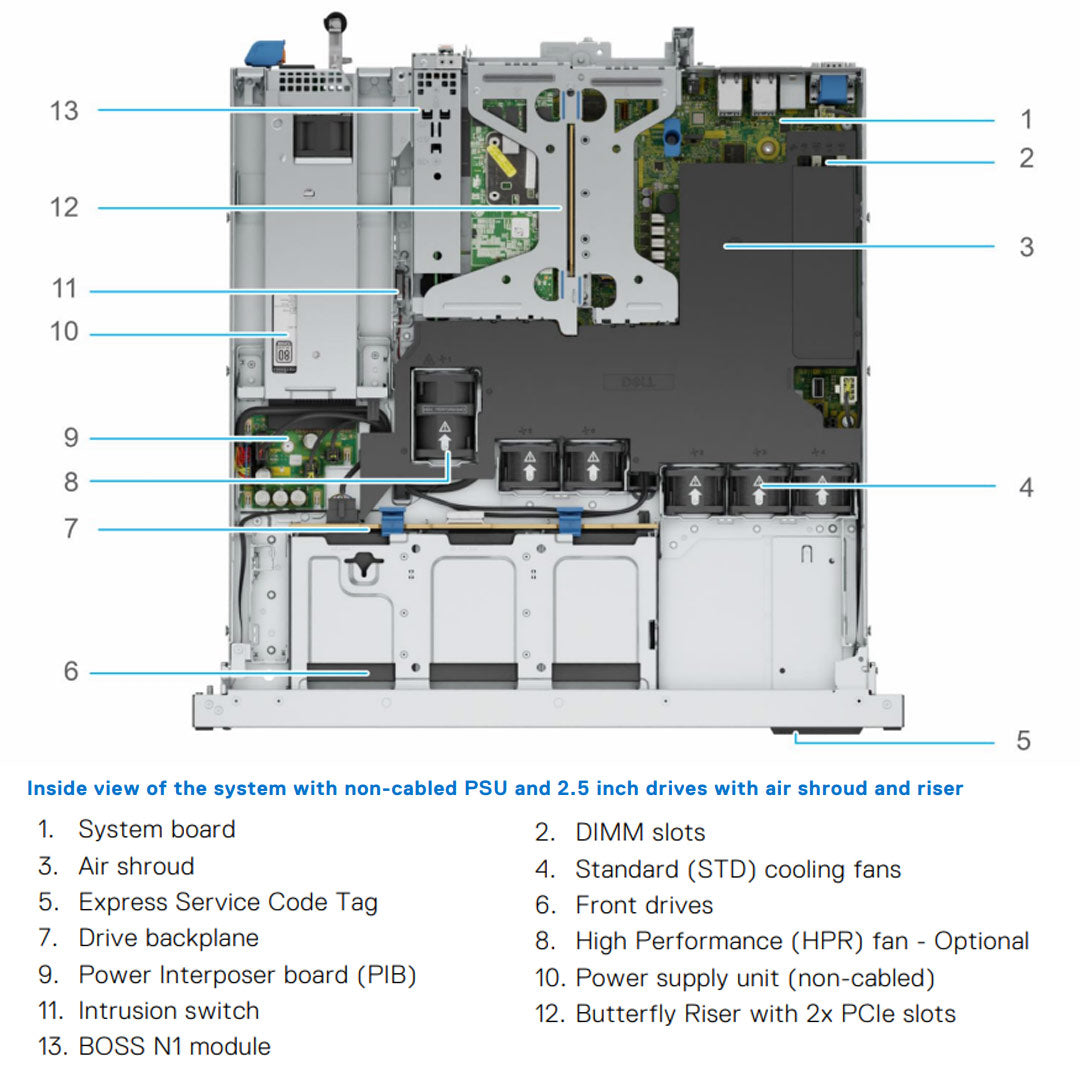

The PowerEdge R260 system supports up to a maximum of six fans, five Standard (STD), and one High performance (HPR) cooling fan based on the system configuration. These fans are not hot-swappable. The Number of fans changes based on which Chassis you select. When the 6 x 2.5" Chassis is selected. Two more Fans slots must be filled behind the drive cage. The one high performance Fan is required when the BOSS-N1 Module is installed.
| DIMM type | Rank / Width | Capacity | DIMM rated voltage and speed | Operating Speed | |
|---|---|---|---|---|---|
| 1 DIMM per channel (DPC) | 2 DIMM per channel (DPC) | ||||
| ECC UDIMM | 1 R / 8 | 16 GB | DDR5 (1.1 V), 5600 MT/ | 4400 MT/s | 4000 MT/s |
| 2 R / 8 | 32 GB | DDR5 (1.1 V), 5600 MT/ | 4400 MT/s | 3600 MT/s | |
The system supports up to two 10/100/1000 Mbps Network Interface Controller (NIC) ports embedded on the LAN on Motherboard (LOM) and up to four ports integrated on the optional network cards.
| Feature | Specifications |
|---|---|
| LOM | 1 Gb x 2 |
| Network Card (optional) | 1 Gb x 4, 10 Gb x 2, 10 Gb x 4 |
BOSS-N1 NVMe ModuleThe Boot Optimized Storage Sub-system is the perfect way to load the OS on this server. Otherwise, you will have to allocate 1 of the drives. This is not ideal when the storage in the system is so limited and the mixing of drive types is not supported. The BOSS module has a dedicated slot with 2 Hot-Swap M.2 Drives.
Internal USBThe Second option is an embedded USB slot on the system board. This USB drive can handle any OS you need to load. View the Manual for more information on the internal USB.
| Configuration No. | Riser Configuration | No. of Processors | PERC type supported on riser | Rear Storage Possible |
|---|---|---|---|---|
| RC0 | No Riser | 1 | N/A | No |
| RC1 | 1x Riser (Gen4) | 1 | aPERC | No |
Riser RC1 Top View
Riser RC1 Bottom ViewDell's RAID controller options offer performance improvements, including the Adapter PERC solution. Adapter PERC provides a base RAID HW controller without consuming a PCIe slot by using a small form factor and high-density connector to the base planar.
The Adapter PERC (aPERC) can only be installed in one of the PCIe slots. You must install the RC1 Butterfly Riser that supports 2 PCIe 4.0 slots.
| Model and Form Factors | Interface Support | PCI Suppo rt | SAS Connection | Cach e Mem ory Size | Write Back Cache | RAID Levels | Max Drive Support | RAID Support |
|---|---|---|---|---|---|---|---|---|
| PowerEdge Server-Storage Controllers (PERC and SAS HBA) Series 11 | ||||||||
| H755 Adapter | 12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA Gen3 (8 GT/s) NVMe Gen4 (16 GT/s) NVMe |
PCIe Gen 4 | 16 ports- 2x8 Internal | 8 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 16/controller 50 with SAS Expander |
Hardware |
| HBA355i Adapter | 12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA | PCIe Gen 4 | 16 ports- 2x8 Internal | N/A | N/A | N/A | 16/ controller 50 with SAS Expander |
N/A |
| HBA355e Adapter | 12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA |
PCIe Gen 4 | 16 ports- 4x4 external | N/A | N/A | N/A | 240 | N/A |
| H355 Adapter | 12Gb/s SAS 6Gb/s SAS/SATA |
PCIe Gen 4 | 16 ports- 2x8 Internal | No Cache | No Cache | 0,1,10 | Up to 32 RAID, or 32 Non- RAID |
Hardware |
| S160 Software RAID | Gen4 (16 GT/s) NVMe | PCIe Gen 4 | N/A | No Cache | No Cache | 0,1,5,10 | Up to 8 | Software RAID - Windows only |
- 450 W WRAC Platinum (AC only) cabled non-redundant 106mm
- 700 W mixed mode HLAC Titanium 60mm
- WRAC - Wide Range AC 100 VAC - 240 VAC
- HLAC - High Line AC 200 VAC - 240 VAC
- Height: 42.8 mm (1.685")
- Width: 482.0 mm (18.976")
- Max Depth: 496.74 mm 19.555")
- Max Weight: 9.61 kg (21.18Lbs)
